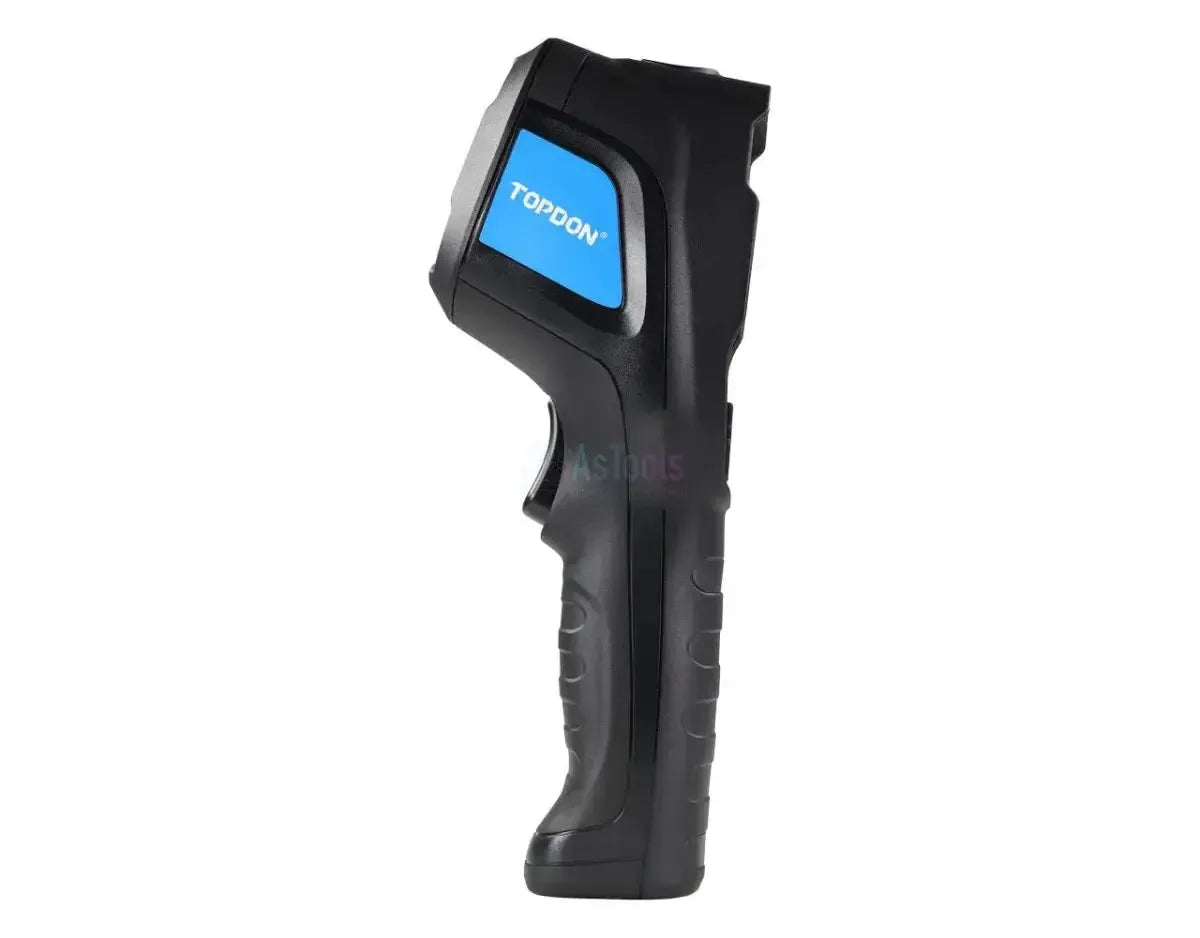

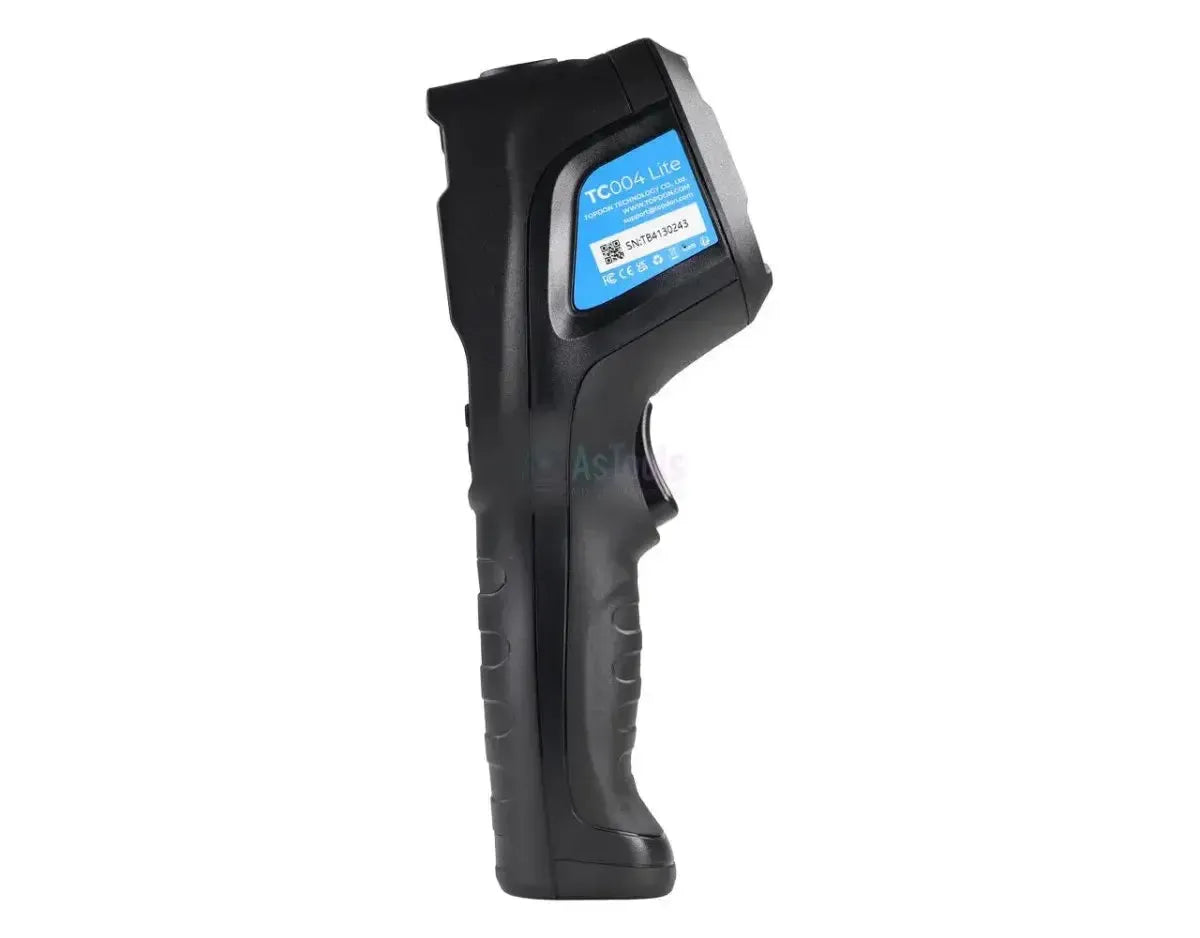

Topdon TCView TC004 Lite | Thermal Imaging Camera

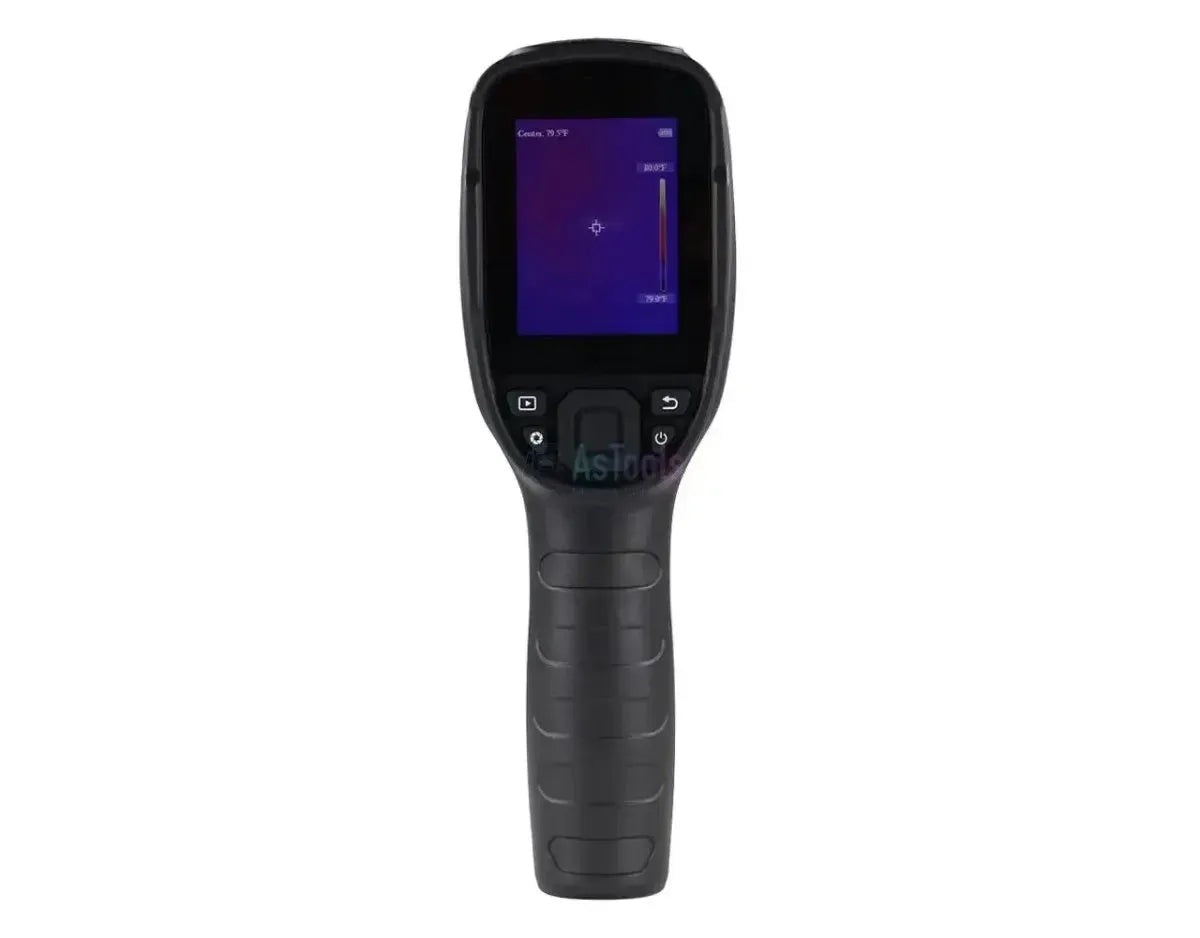

The Topdon TCView TC004 Lite is a handheld thermal imaging camera designed for thermal inspections. The device is equipped with a thermal sensor with a resolution of 160 x 120 pixels, displaying images on a 2.8 inch screen with a resolution of 320 x 240 pixels. The camera has a fixed lens with a field of view (FOV) of 40° x 30° and can measure temperatures within a range of -20 °C to 550 °C.

Thanks to a frame rate of 25 Hz, the camera delivers smooth and real-time thermal images. The TC004 Lite features a digital zoom function with 1x, 2x, and 4x magnification. Images can be stored on the internal 512 MB memory. The built-in 2900mAh battery offers up to 15 hours of use. The housing has an IP54 rating, providing protection against dust and water, and is designed to withstand a 2-meter drop.

Application and functionality:

The TC004 Lite is designed for performing thermal analyses in various environments. The combination of a wide temperature range and a high frame rate makes the device suitable for dynamic inspections.

• Temperature range: With a measurement range from -20 °C to 550 °C, the camera is suitable for a wide range of applications.
• Real-time imaging: The 25 Hz frame rate ensures smooth display of temperature changes.
• Digital zoom: Provides the ability to view details up close with 1x, 2x, and 4x zoom levels.
• Robust construction: The camera has an IP54 rating and is drop-resistant up to 2 meters, enhancing durability in demanding conditions.

Measurement capabilities and Application:

The camera offers specific measurement functions for accurate thermal inspections.

• Temperature measurement: The device measures temperatures with a maximum deviation of ±2 °C or ±2% for reliable readings.

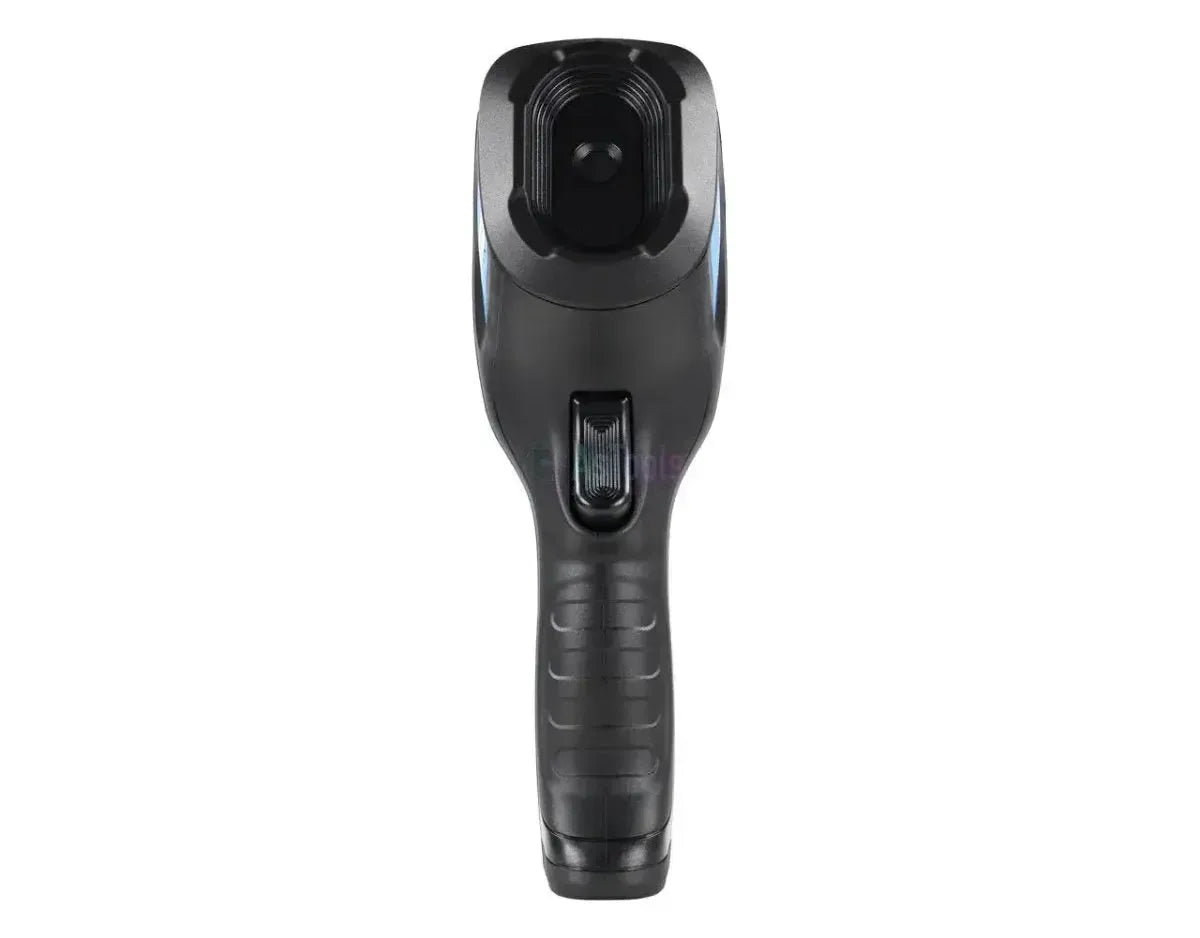

• Thermal inspections: The wide field of view of 40° x 30° allows larger surfaces to be inspected at once.

Storage and connectivity:

The TC004 Lite features internal storage capabilities and a standard port for data transfer and charging.

• Storage: Images can be saved directly to the internal 512 MB memory.

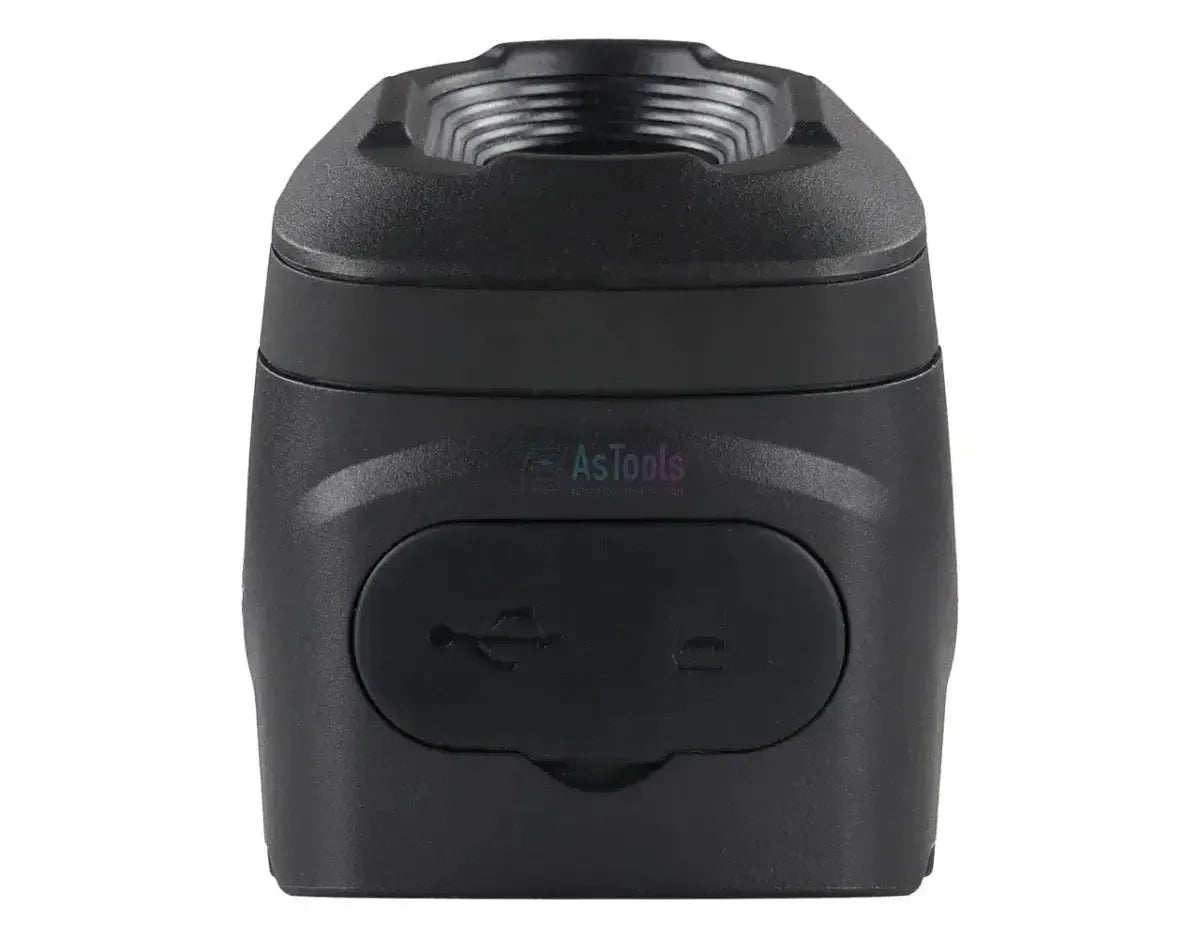

• Connectivity: A USB port is used for charging the battery and transferring stored data to a computer.

Compatible software and platforms:

The Topdon TC004 Lite operates as a standalone device. Stored images can be transferred to a computer via the USB connection for further analysis or reporting with standard image software.

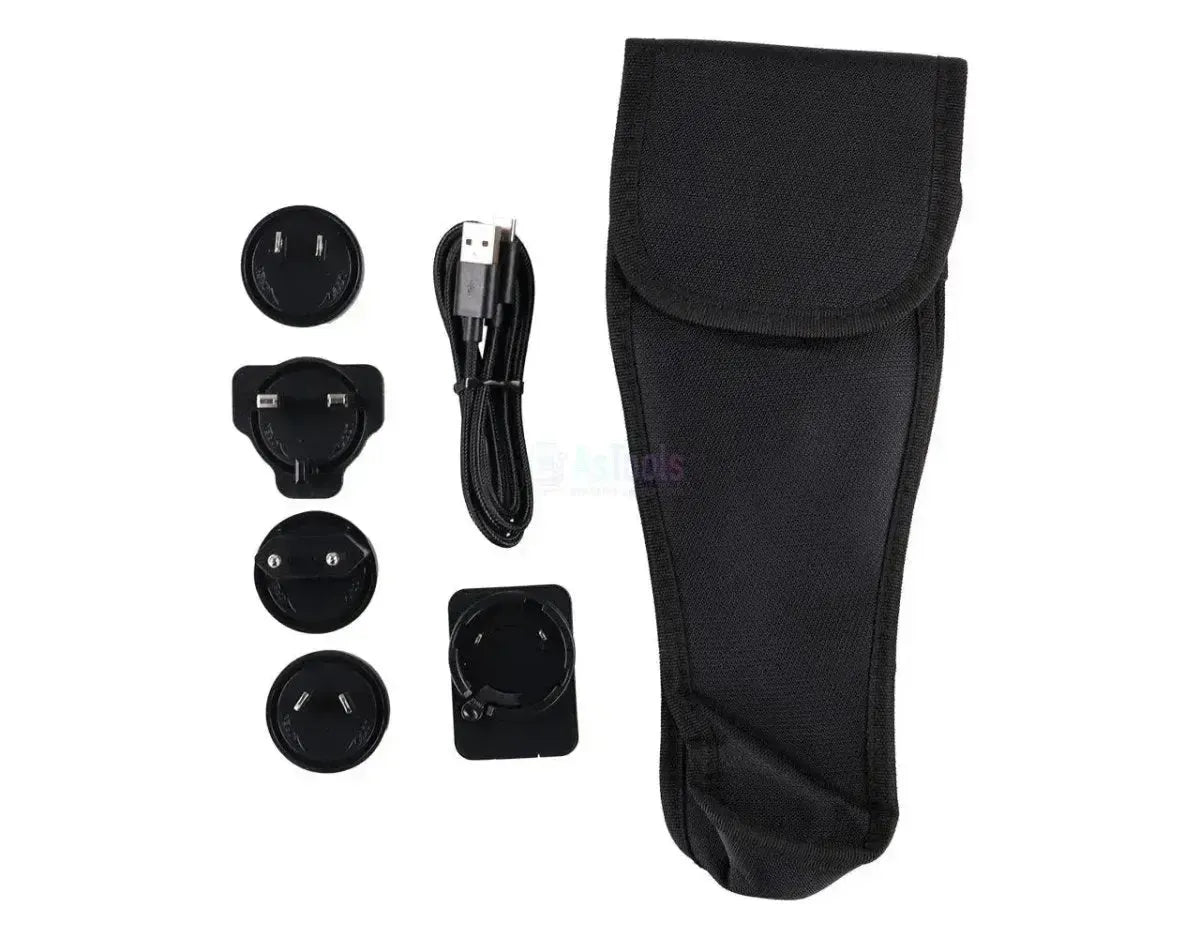

Package Contents:

• 1x Topdon TC004 Lite thermal imaging camera
• 1x USB cable
• 1x Carrying case
• 1x Manual
• 1x 5V/3A charger

Technical specifications:
