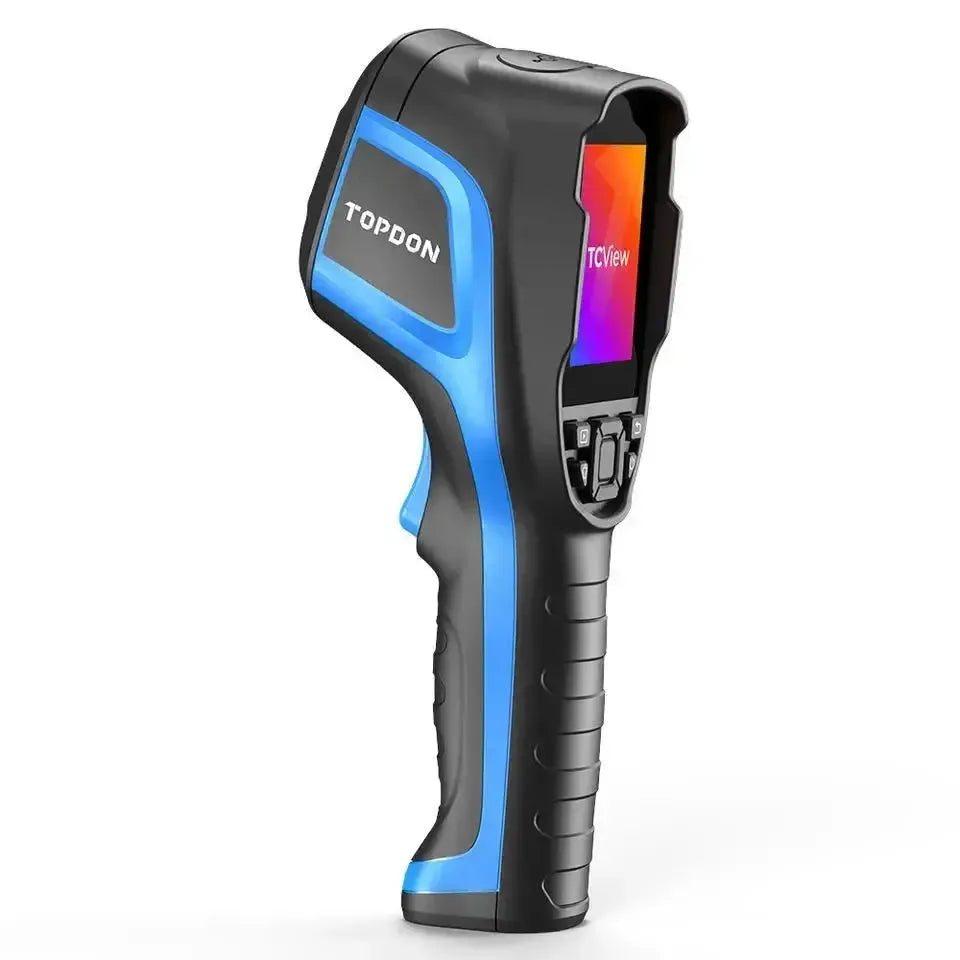

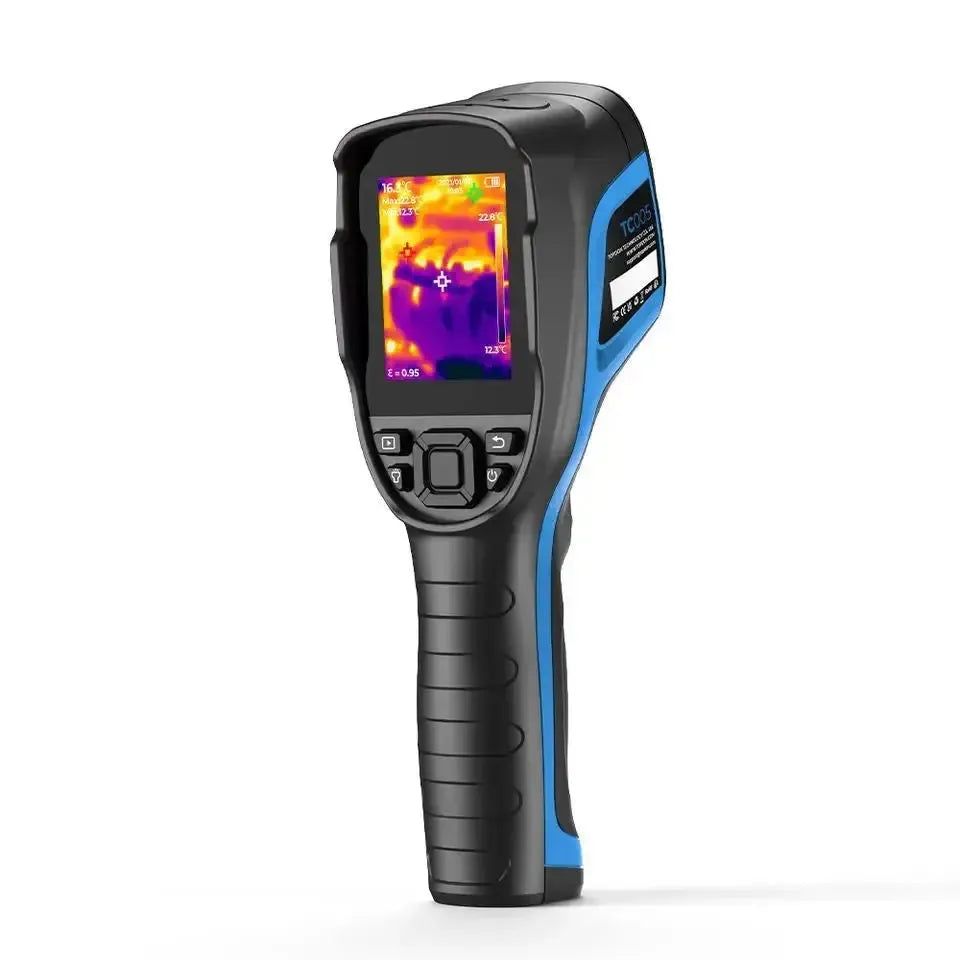

Topdon TCView TC005 | Thermal Imaging Camera

The Topdon TC005 is a thermal monocular thermal imaging camera designed for long-distance observation. The device combines an IR sensor with a 384x288 resolution and an adjustable 35mm lens, providing detailed thermal images. With a thermal sensitivity (NETD) of less than 35 mK, small temperature differences can be detected. The detection range of this model is up to 1280 meters, allowing objects at great distances to be identified.

For extra functionality, the TC005 is equipped with a built-in laser distance meter that can measure distances up to 594 meters. Images are displayed on a 1024x768 OLED display and can be stored on the internal 64GB memory. The camera supports a digital zoom up to 8x and has a frame rate of 50 Hz for smooth images. Power is supplied by two interchangeable and rechargeable 18650 batteries. The device can be connected to an external power source via the USB-C port.

Application and functionality:

The TC005 is designed for use in various environments, from nature and wildlife observation to search and rescue operations. The robust aluminum housing has an IP65 rating, making it dust and waterproof. The camera operates silently, making it suitable for situations where remaining unnoticed is important.

• Digital zoom: Offers stepwise magnification of 1x, 2x, 4x, and 8x to view objects closer.
• Laser rangefinder: An integrated feature for accurately measuring the distance to an object.
• Replaceable batteries: Comes with two rechargeable 18650 batteries, extending the usage time.
• IP65 rating: The housing is protected against dust and water jets, allowing use in various weather conditions.

Measurement capabilities and applications:

In addition to thermal detection, the camera offers specific measurement functionalities useful for professional and recreational applications.

• Distance measurement: With the built-in laser rangefinder, the distance to targets up to 594 meters can be accurately determined.
• Applications: Suitable for monitoring wildlife, outdoor activities, security tasks, and support in search operations.

Storage and connectivity:

The camera offers internal storage options and a connection for external power.

• Storage: Equipped with 64 GB internal memory for storing a large number of photos and videos.
• Connectivity: Equipped with a USB-C port that can be used to connect an external power source.

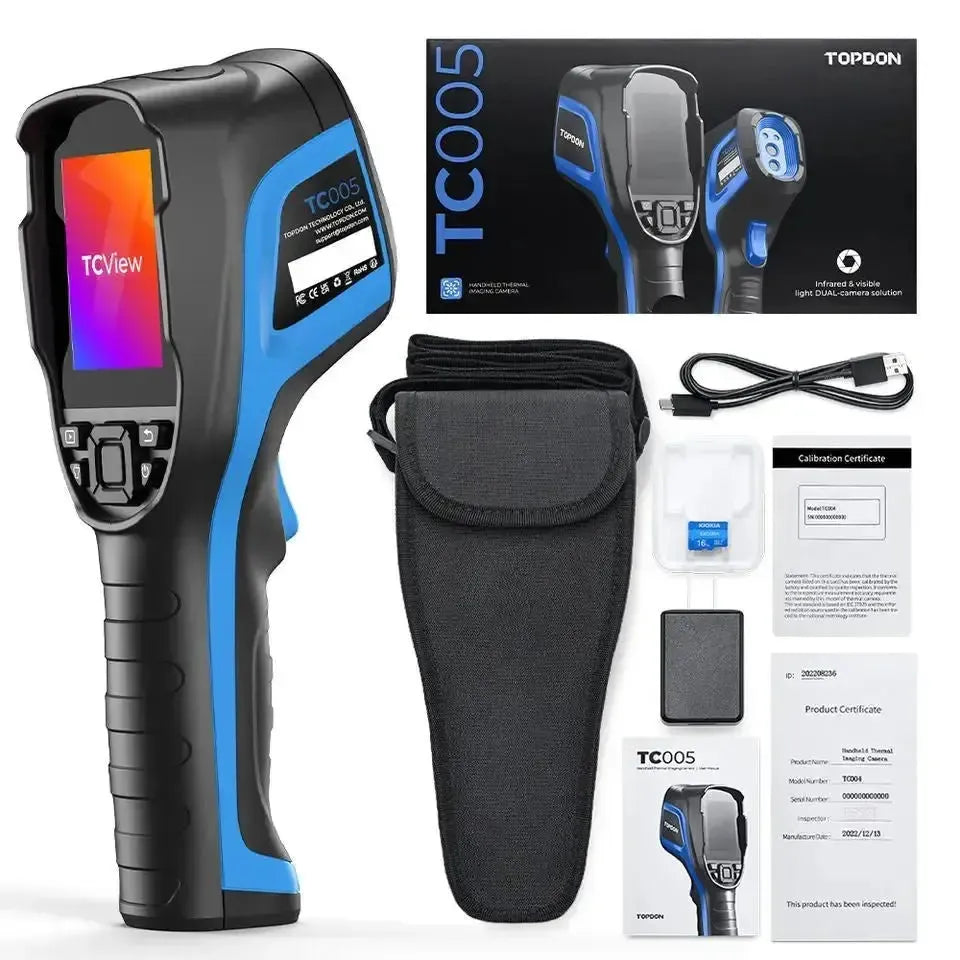

Package Contents:

• 1x Topdon TC005 (TS005) thermal imaging camera
• 1x USB-A to USB-C cable
• 1x Video cable
• 1x Battery charger
• 2x Rechargeable 18650 battery
• 1x Carrying bag
• 1x Manual
• 1x Package Contents box

Technical specifications:
