Discover similar products: Diagnostic Tools Adapter Cables
AsTools  |  SKU: Autel DB15 Cable

Autel | 15-pin DB15 - 16-pin OBD2 Adapter Cable | Diagnostic Tool

5,0 2 reviews
€16,95 incl.
€14,01 excl.

Warranty directly via AsTools

We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.

Easy returns

You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

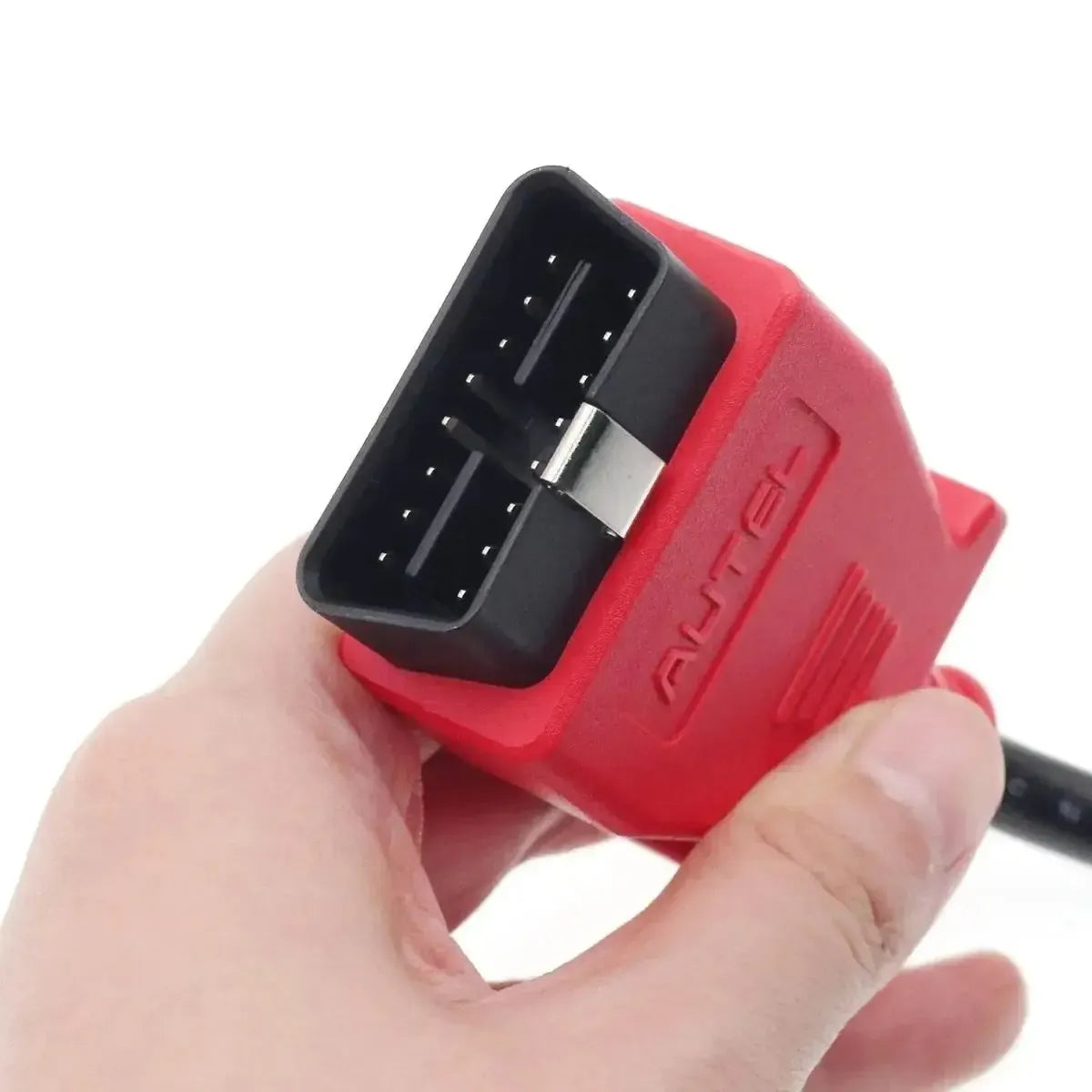

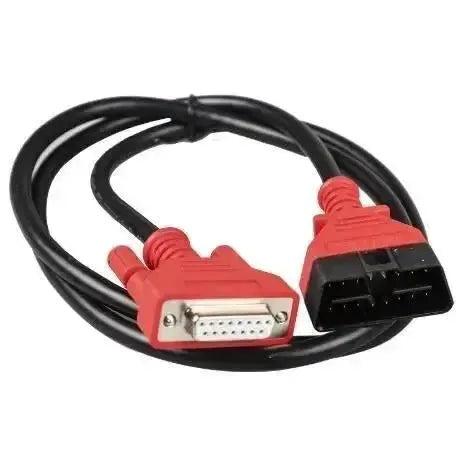

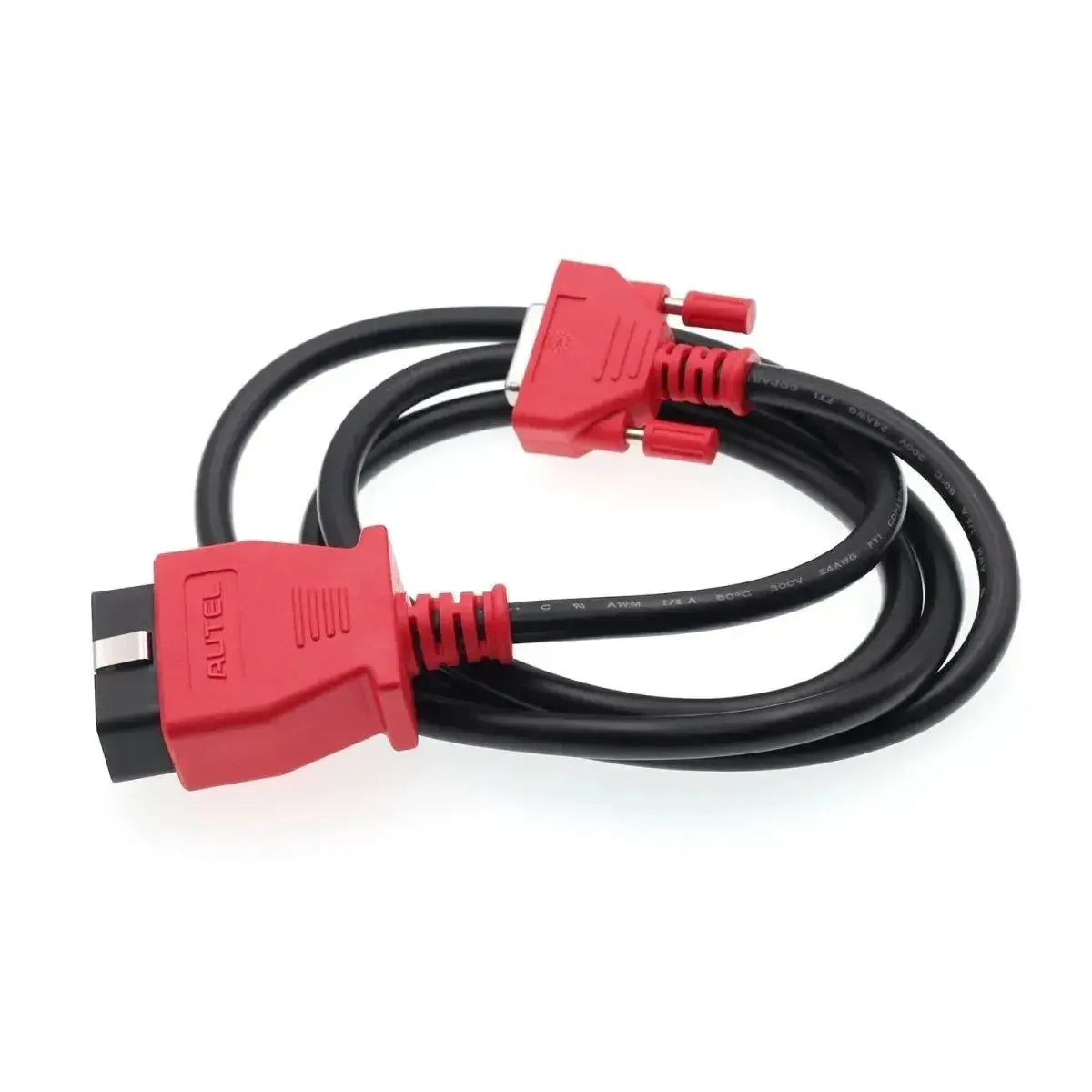

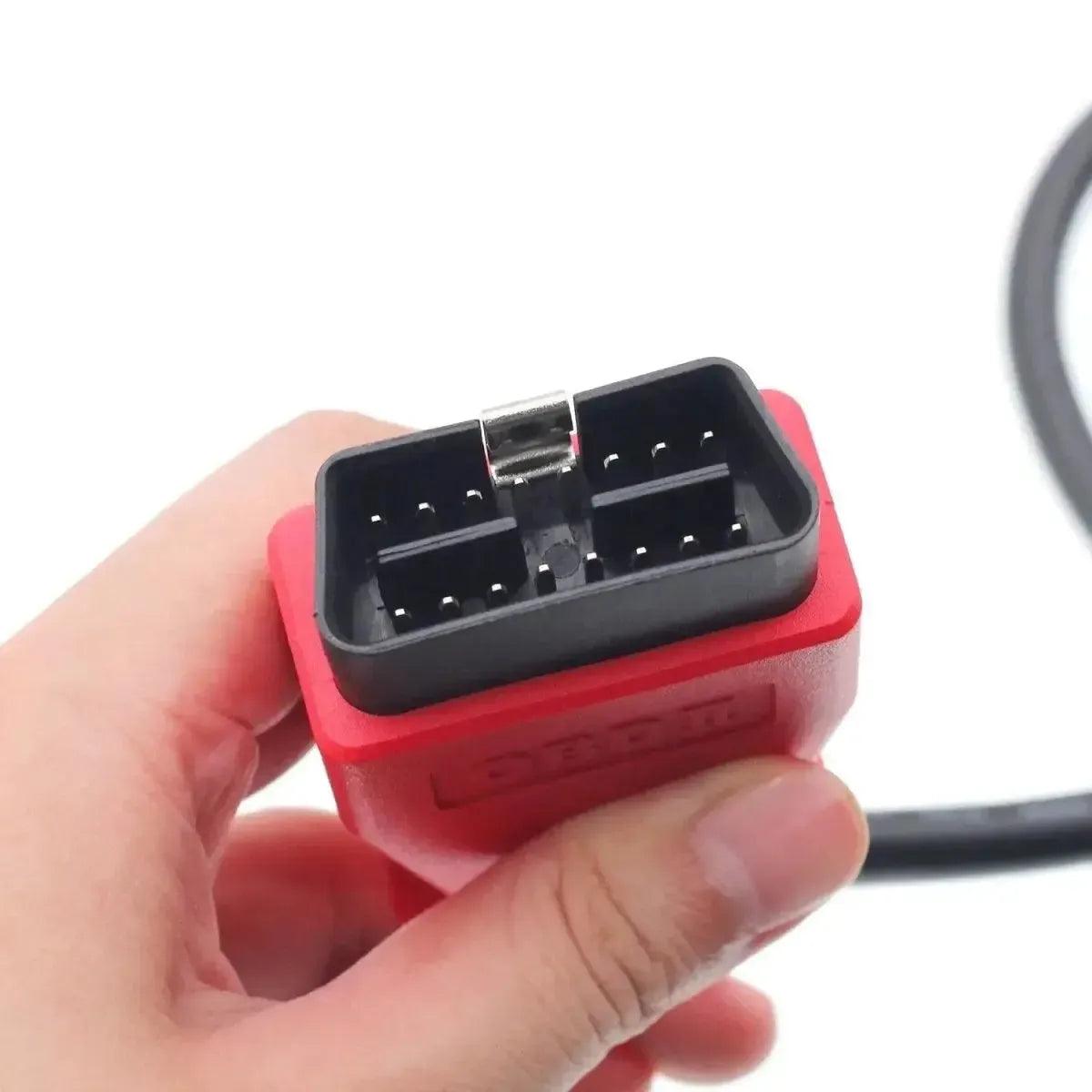

The Autel 15-pin DB15 to 16-pin OBD2 adapter cable serves as the primary data connection between your diagnostic scanner and vehicle. This cable features a 15-pin DB15 connector with locking screws for secure attachment to the serial port on your diagnostic tablet, plus a standard 16-pin OBD2 connector for linking to your vehicle's diagnostic port (DLC). The cable acts as a physical bridge enabling two-way communication and power delivery between your scan tool and the vehicle's internal networks.

From a technical standpoint, this main cable enables complete signal transmission and protocol compatibility required for modern OBD2 and EOBD diagnostics. The cable supports pass-through connectivity for all standardized communication protocols, including CAN, J1850, ISO9141, and KWP2000. Thanks to its direct pin configuration, vehicle data is transmitted reliably with zero latency, while the cable also delivers the necessary 12V power supply directly from your vehicle's battery to your connected diagnostic device.

KEY BENEFITS

✔Secure attachment to your diagnostic scanner with integrated locking screws on the DB15 connector.
✔Enables direct 12V power supply from your vehicle battery to the diagnostic tablet.
✔Supports uninterrupted signal transmission for all standard OBD2 communication protocols.
✔Built with heavy-duty shielding and strain relief for reliable performance in workshop environments.

IMPORTANT NOTES

✕Compatible exclusively with specific wired Autel diagnostic equipment.
✕Does not replace Bluetooth VCI modules or wireless communication interfaces.
✕The cable length limits your physical freedom of movement around the vehicle during diagnostics.

Applications and features

This adapter cable is essential for performing wired vehicle diagnostics and offers the following capabilities when used with compatible Autel diagnostic equipment:

  • Read and clear fault codes: Enables the physical data connection needed to retrieve diagnostic trouble codes (DTCs) from various electronic control units (ECUs) and clear them after repairs.
  • Stream live data: Provides a stable broadband connection for real-time display of parameters, sensor readings and graphs on your diagnostic device.
  • Device power supply: Delivers 12V power from the OBD2 port (Pin 16) directly to the diagnostic tablet, keeping your device powered or charged during use.
  • Bidirectional communication: Supports active testing functions, programming and coding by transmitting and receiving data simultaneously without signal loss or interference.

Compatible devices

This main cable is exclusively designed with the specific DB15 pin configuration for use with the following Autel diagnostic tools:

Autel:

  • MaxiCheck MX808
  • MaxiCheck MX808S
  • MaxiCheck MX900
  • MaxiCom MK808
  • MaxiCom MK808S
  • MaxiCom MK808Z
  • MaxiCom MK900
  • MaxiDiag MD808 Pro
💡
Good to know: Before connecting, check that the pins in your vehicle's diagnostic port are not bent or dirty. This prevents damage to the connector and ensures uninterrupted signal transmission during diagnostics.

Package contents

  • 1x Autel | 15-pin DB15 to 16-pin OBD2 Adapter Cable | Diagnostic Tool

Technical specifications

Specification Description
Product type Main/adapter cable (DB15 to OBD2)
Device-side connector 15-pin DB15, female (with locking screws)
Vehicle-side connection 16-pin OBD2 (J1962), male
Total cable length Approximately 1.7 m (5.6 ft)
Supported protocols CAN (ISO 15765), ISO 9141-2, KWP2000 (ISO 14230), SAE J1850
Power supply 12V pass-through via OBD2 pin 16
Pin configuration Pass-through (direct pin-out)
Type Passive wired main cable
Color Black with red connectors

Reviews

5,0 ★★★★★ 2 reviews
5 ★2
4 ★0
3 ★0
2 ★0
1 ★0
★★★★★ Rafael M.

Perfect fit

I like this cable. It looks much stronger then the old one

★★★★★ Alain M.Verified buyer

Better than original.
