AsTools  |  SKU: A0080

Adapter Set (22-piece) for ECU Programming | Accessories

5,0 1 review
€34,95 incl.
€28,88 excl.

Warranty directly via AsTools

We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.

Easy returns

You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

The universal adapter set is a 22-piece collection of adapters designed for programming and reading ECUs (Electronic Control Units). This set enables a direct connection between a programming device, such as K-TAG or FGTech, and the specific contact points on an ECU's circuit board. The adapters support various communication protocols, including BDM (Background Debug Mode) and JTAG.

The different adapters in this set are specifically engineered for a wide range of processor families and ECU manufacturers. The set is designed for use with a BDM frame, eliminating the need for soldering on the ECU. The pogo pins on the adapters provide a stable, temporary connection to BDM or JTAG ports. This makes the set suitable for applications such as chip tuning, ECU repair, and data extraction for brands including Motorola, Infineon, Renesas, Siemens, and Toyota.

KEY FEATURES

✔22 adapters in one set — widely compatible with the most common ECU families and processors.
✔Solder-free operation — pogo pins deliver temporary connections without modifying the ECU.
✔BDM & JTAG support — Motorola MPC5xx/56xx, Infineon Tricore, ST10xx, Renesas, and more.

IMPORTANT NOTES

✕Requires BDM frame — this adapter package does not work standalone; a BDM frame is necessary.
✕Technical expertise required — intended only for professional chip tuners and ECU specialists.
✕Compatible programmer needed — requires K-TAG, FGTech, or equivalent programmer (not included).

Application and functionality

This set provides specific adapters for a broad range of ECU types and processors, enabling direct, solder-free connection to the ECU.

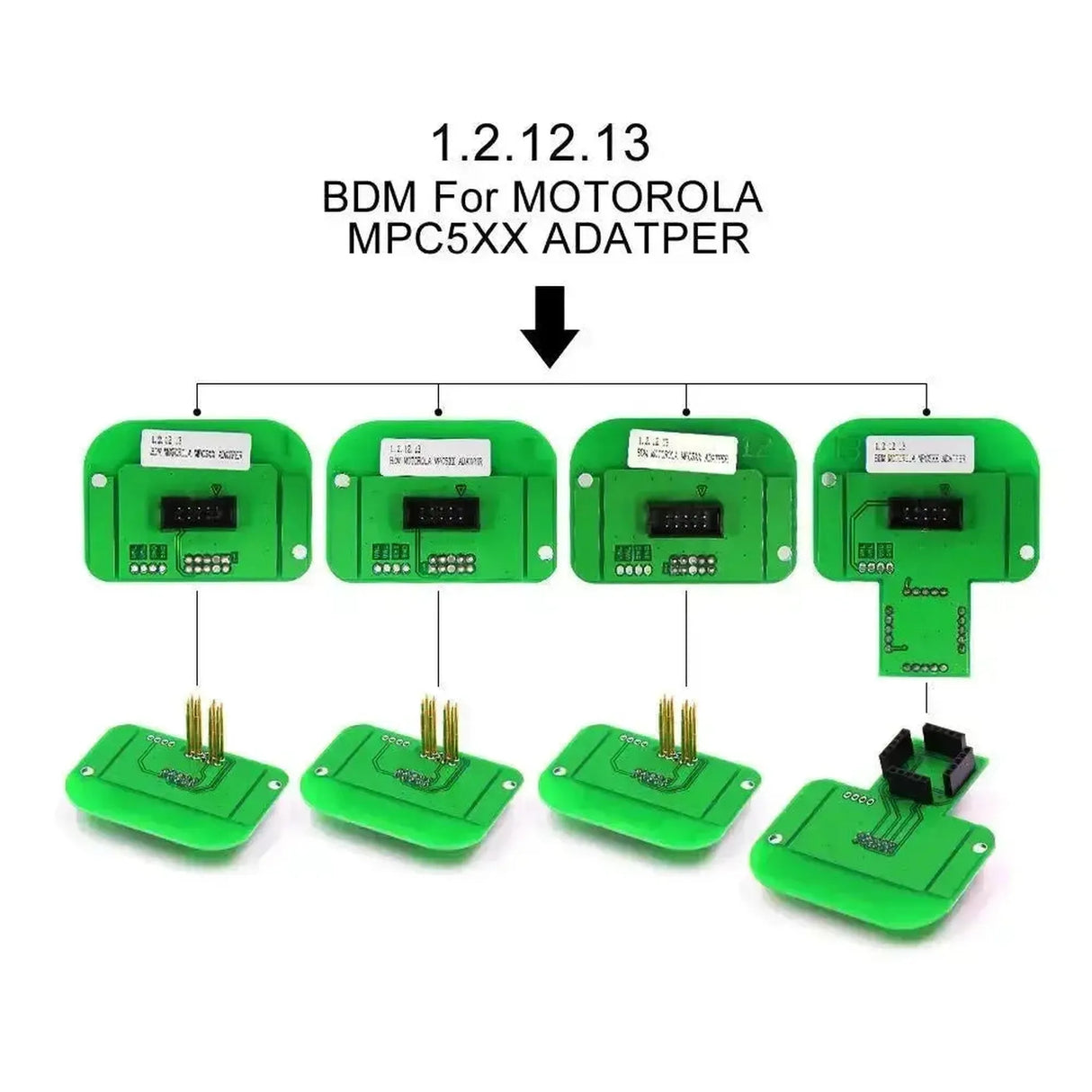

  • BDM connectivity: Adapters for programming ECUs with Motorola MPC5xx processors via the BDM interface.

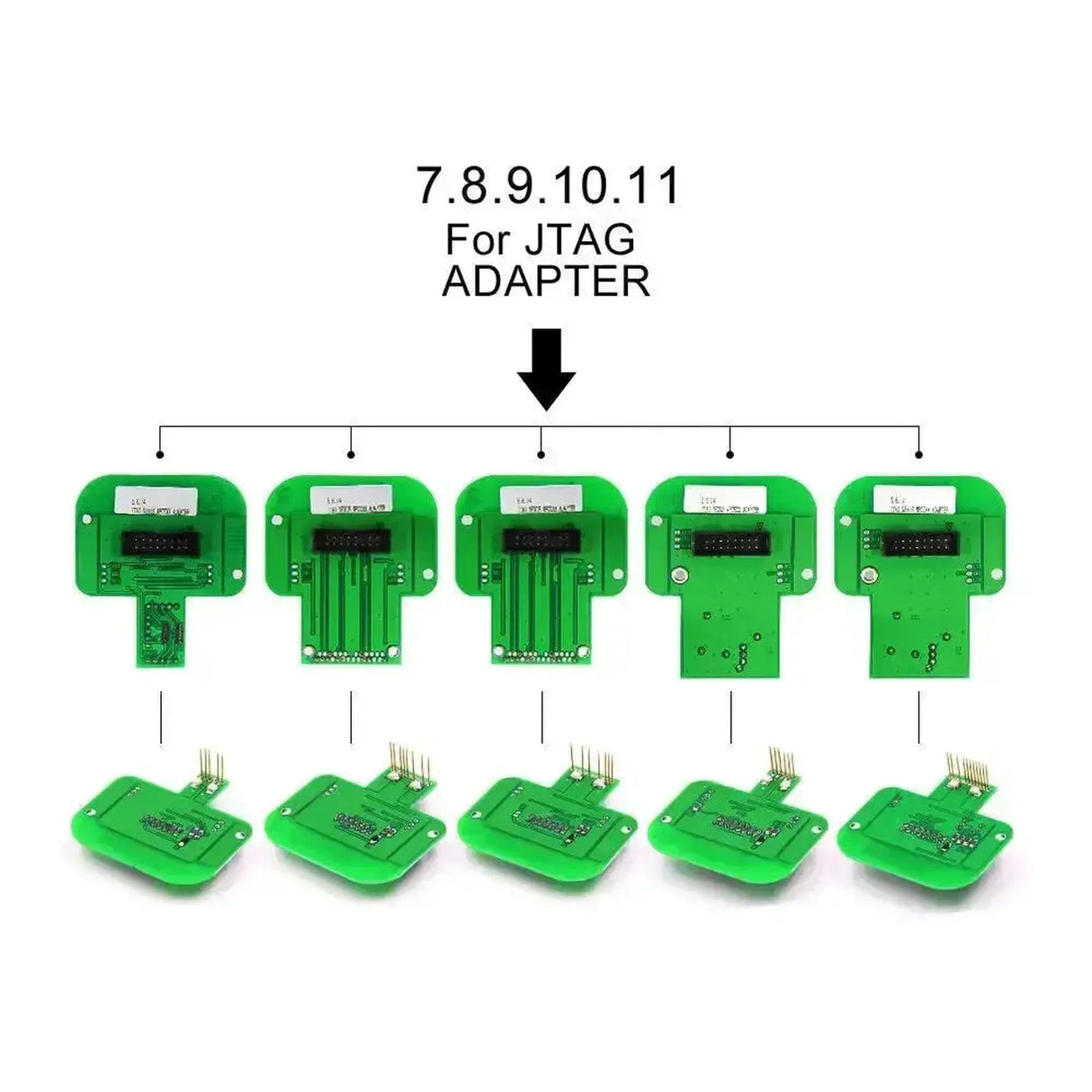

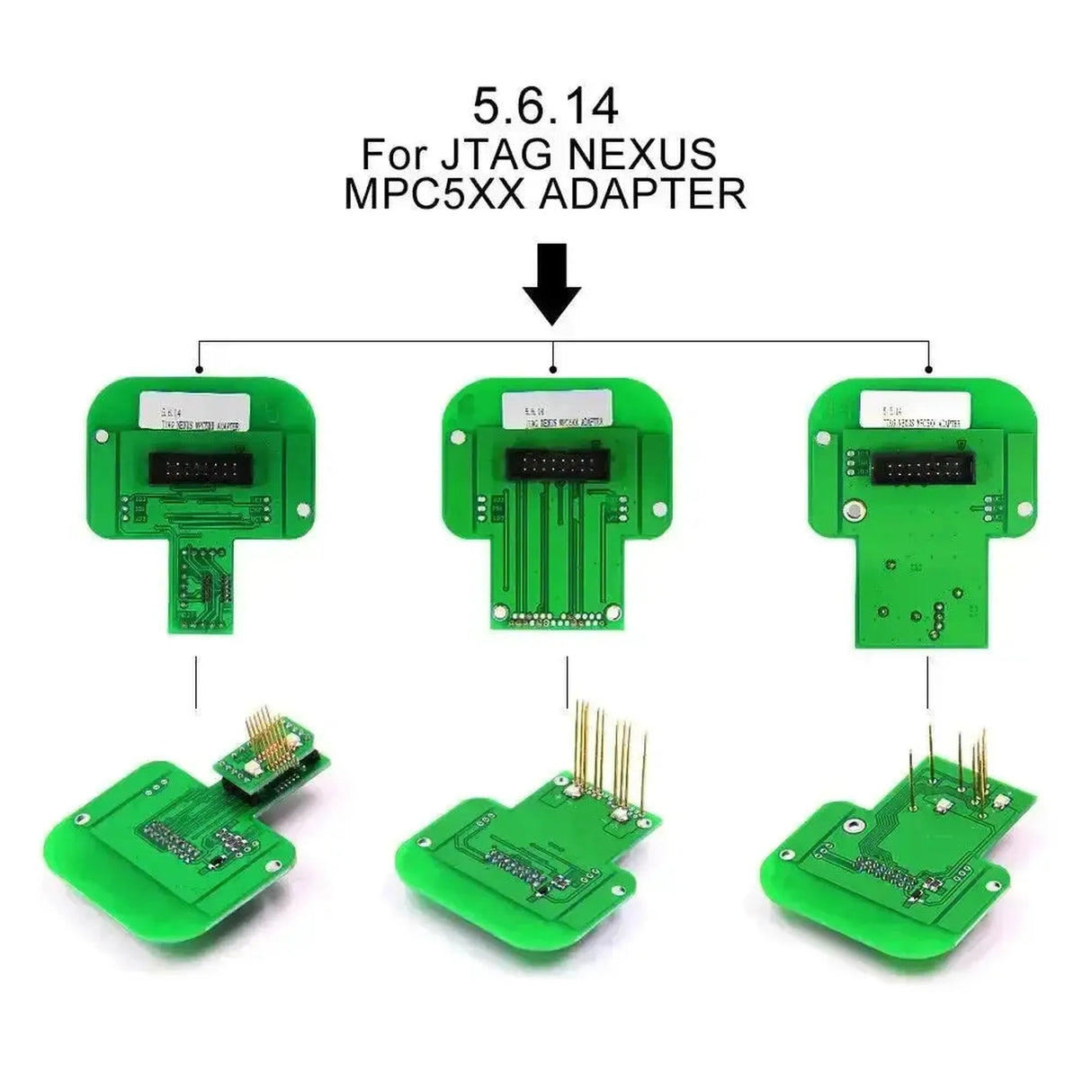

  • JTAG connectivity: Includes adapters for JTAG Nexus MPC5xx and JTAG Renesas protocols.
  • Tricore and ST support: Contains adapters compatible with Infineon Tricore and ST10xx ECUs.

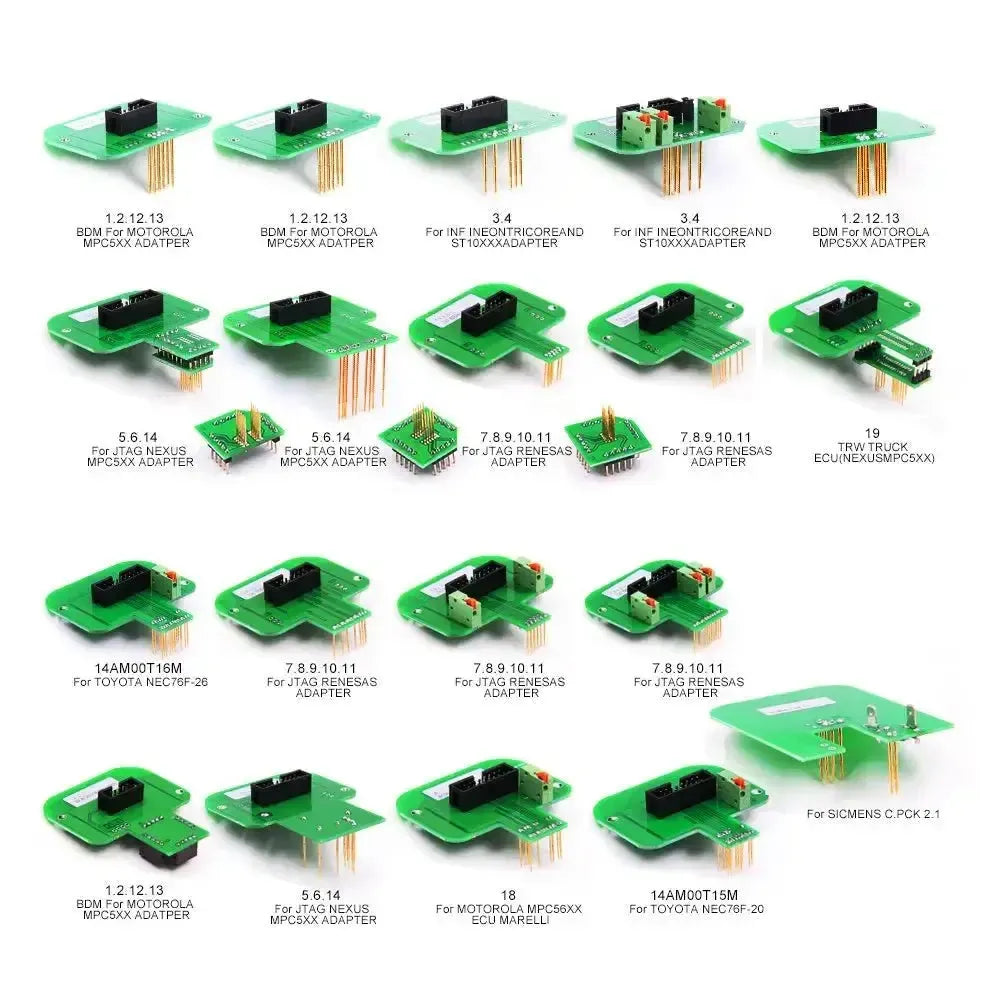

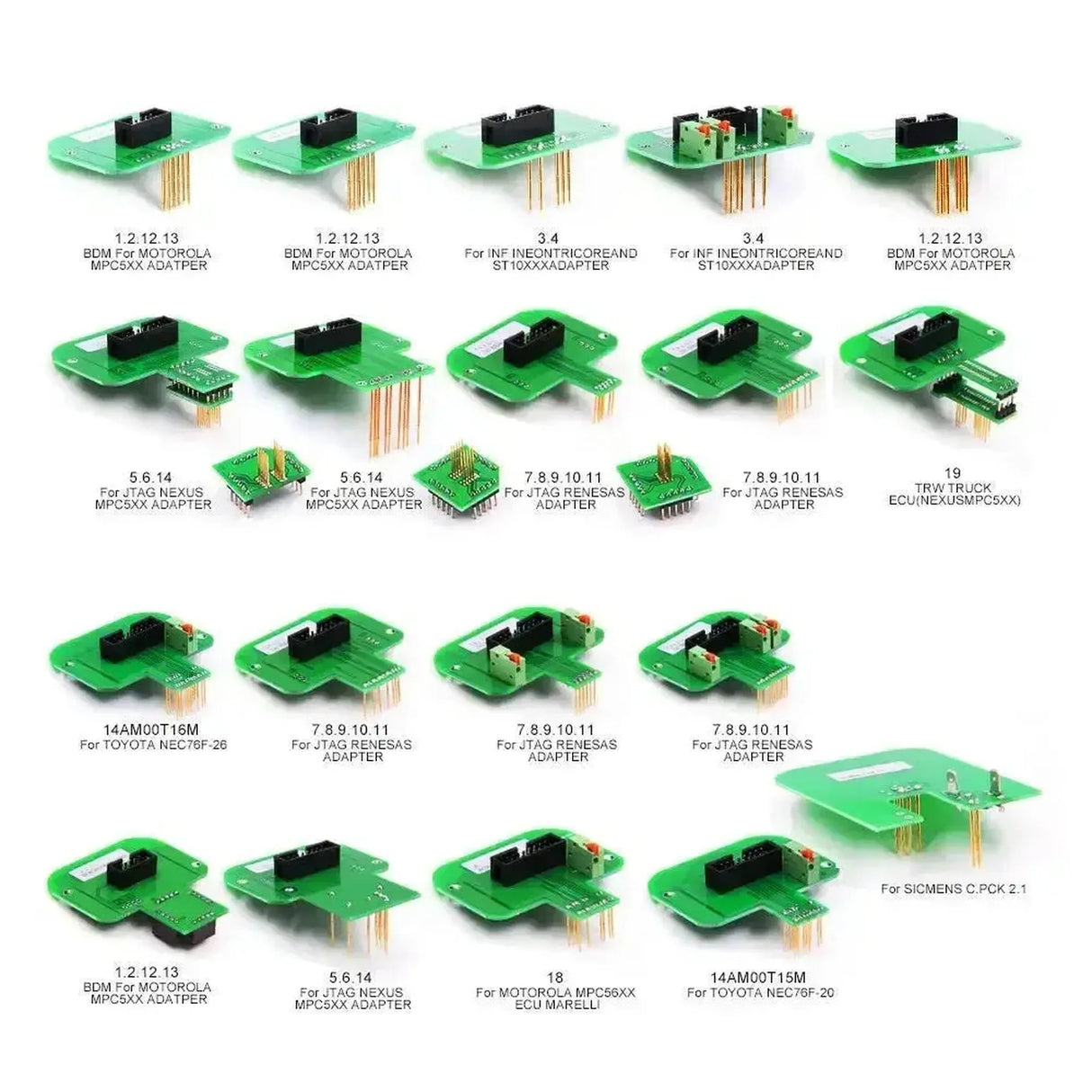

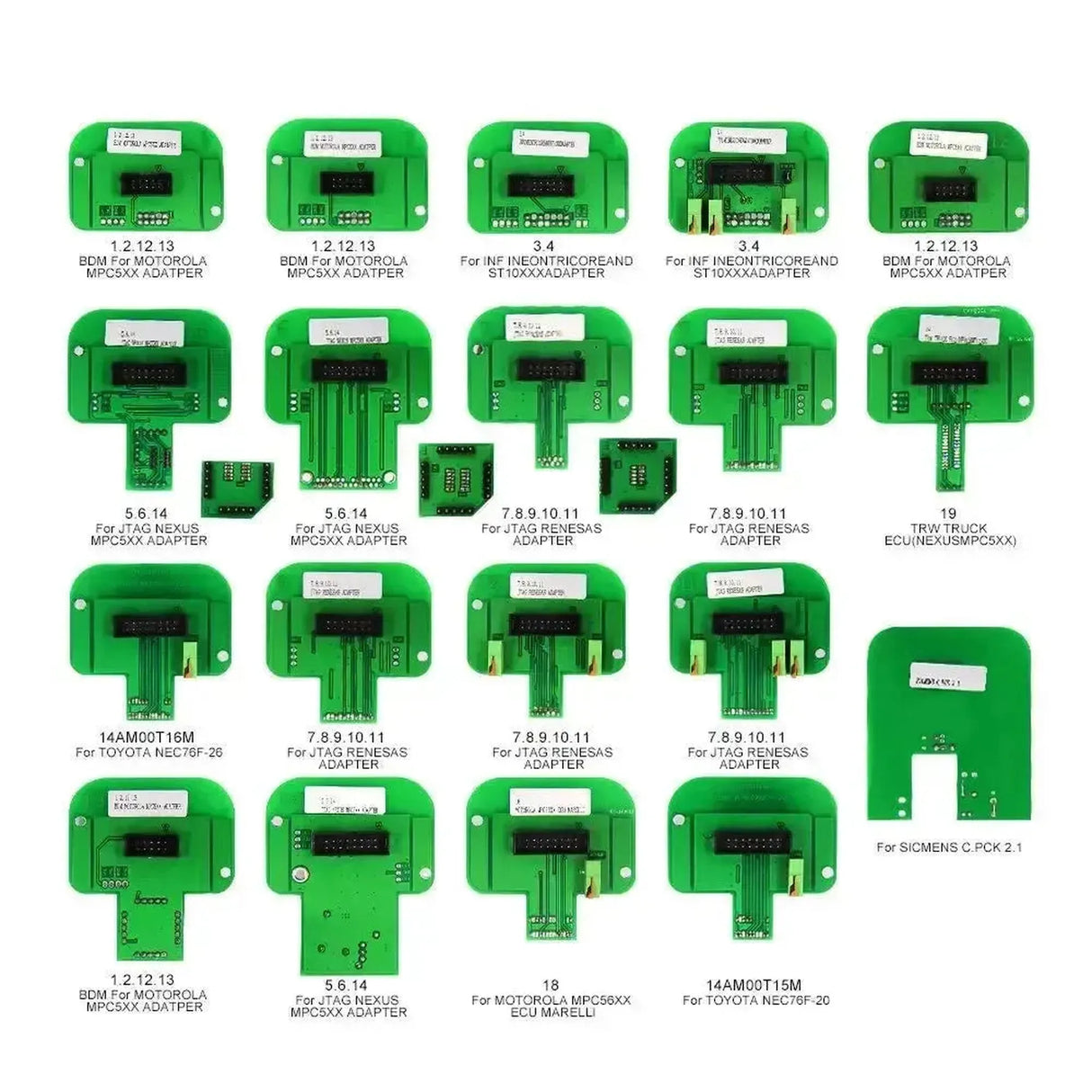

  • Dedicated ECU compatibility: The set includes adapters for specific ECUs such as Siemens PCK 2.1, TRW Truck ECU (Nexus/MPC5xx), and ECUs from Toyota (NEC76F) and Marelli (Motorola MPC56xx).
  • Solderless operation: Designed for use with a BDM frame, where spring-loaded pins (pogo pins) make direct contact with the connection points on the ECU circuit board.
⚠️
Important: This set is intended for professional use only. Improper use can cause permanent damage to the ECU — should only be used by experienced tuners.

Package contents

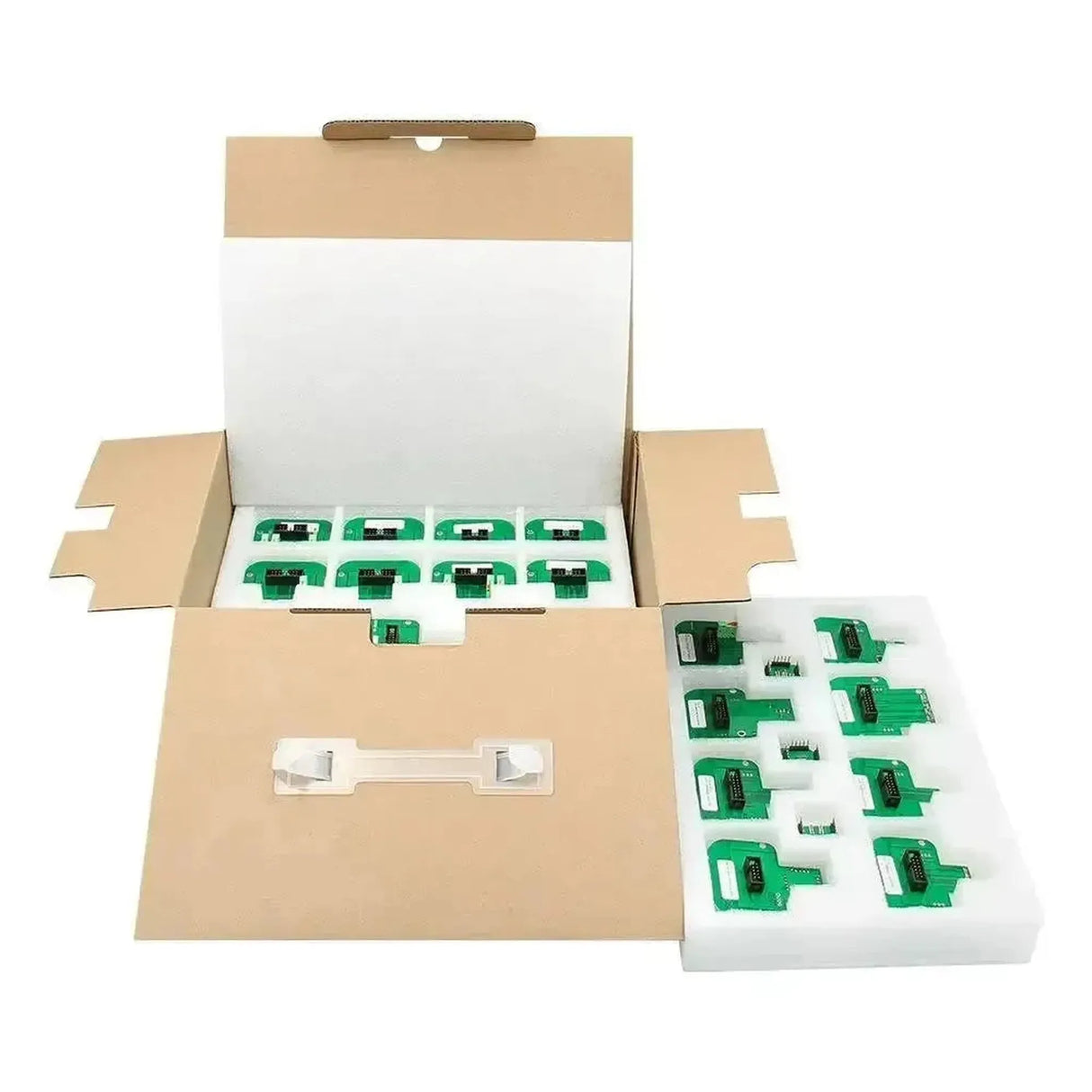

  • 22x Universal ECU programming adapter (various models)

Technical specifications

Specification Description
Number of pieces 22
Application ECU programming, chip tuning, data reading
Connection protocol BDM, JTAG
Compatible processors Infineon Tricore, JTAG Nexus, JTAG Renesas, Motorola MPC5xx, Motorola MPC56xx, ST10xx
Material PCB (Printed Circuit Board)
Programmer Compatible with K-TAG, FGTech and equivalent (sold separately)
