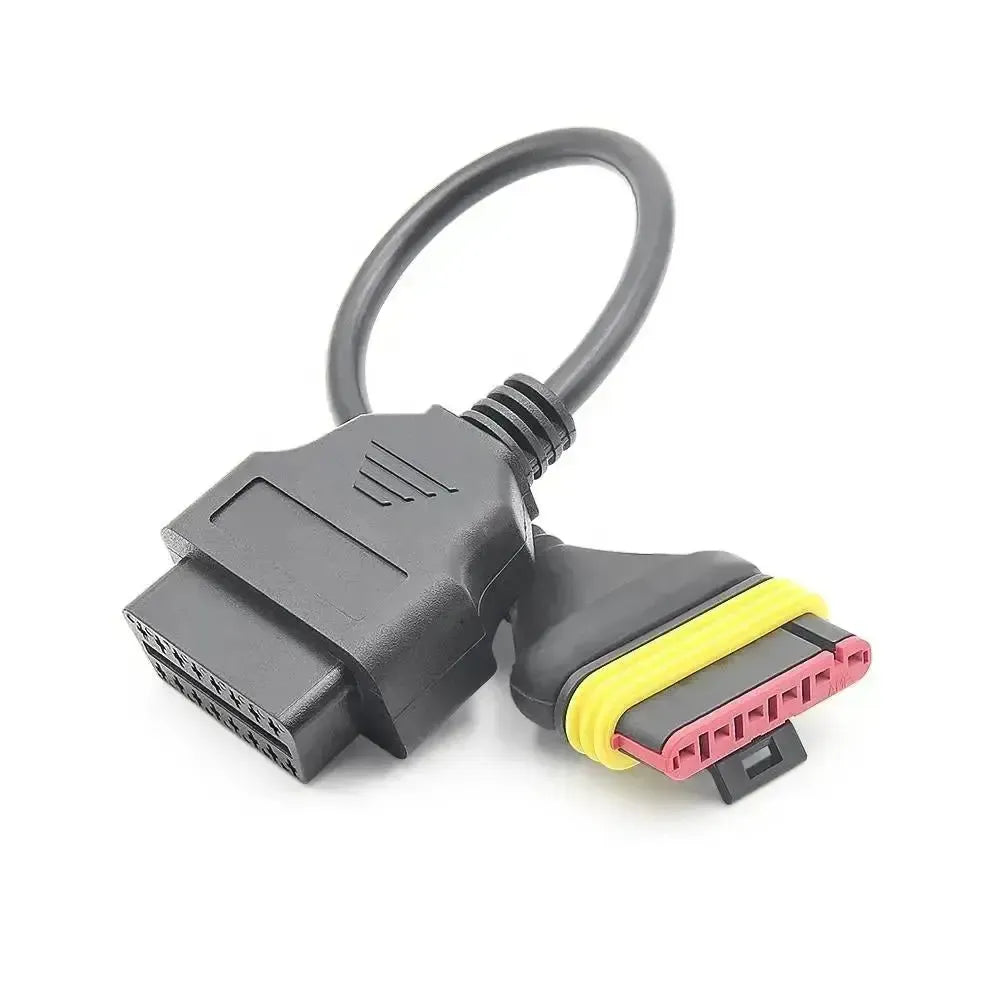

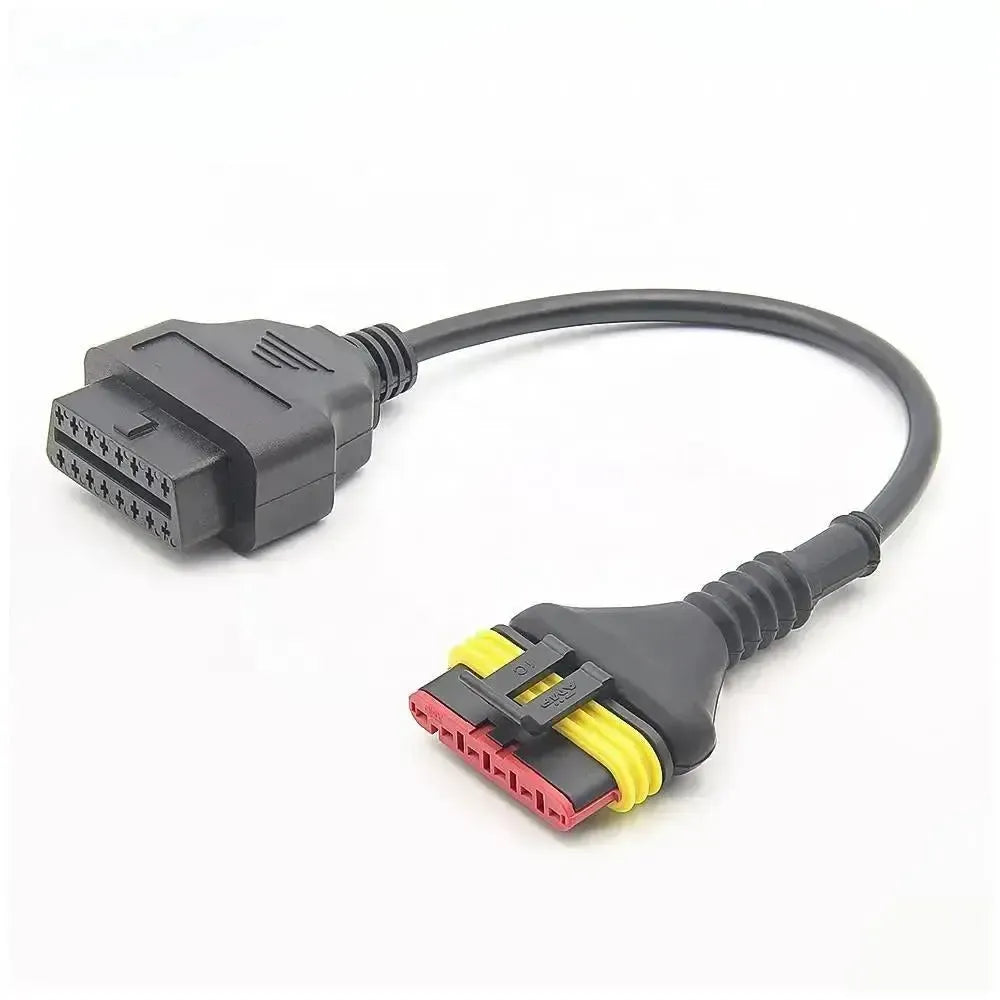

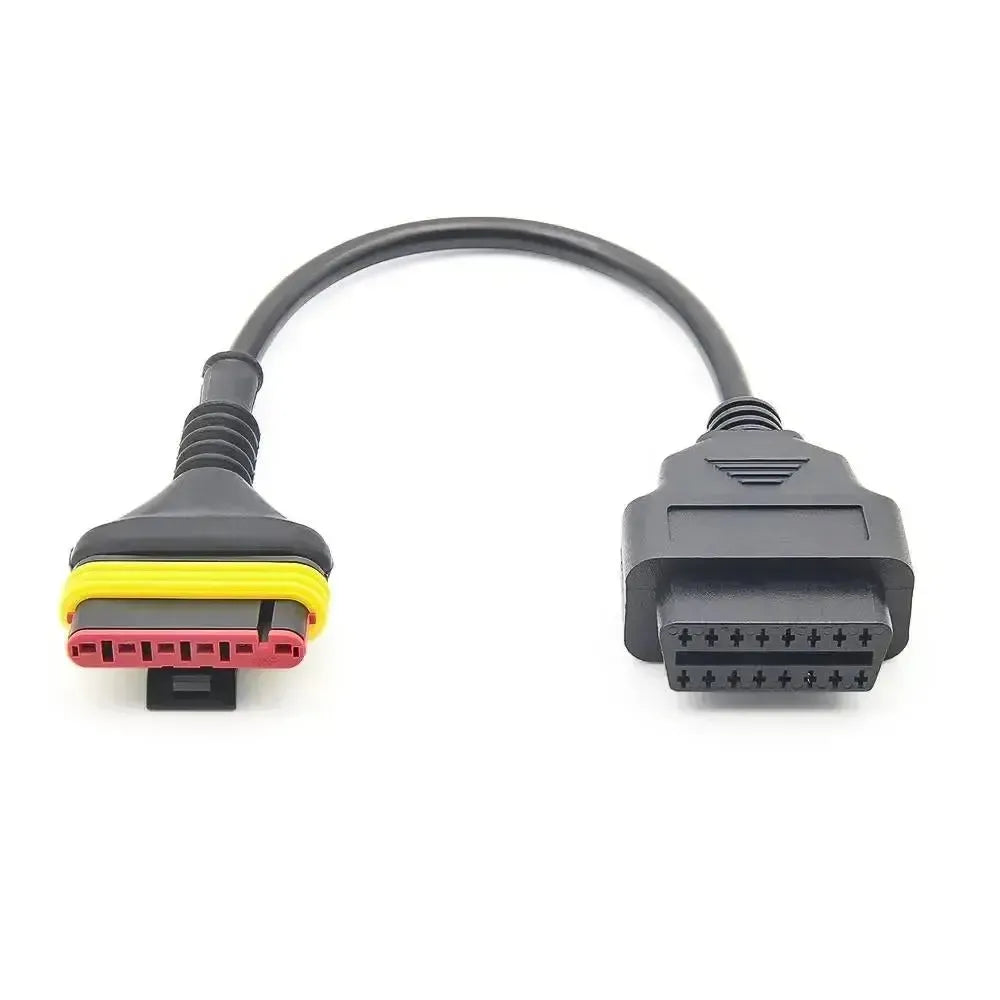

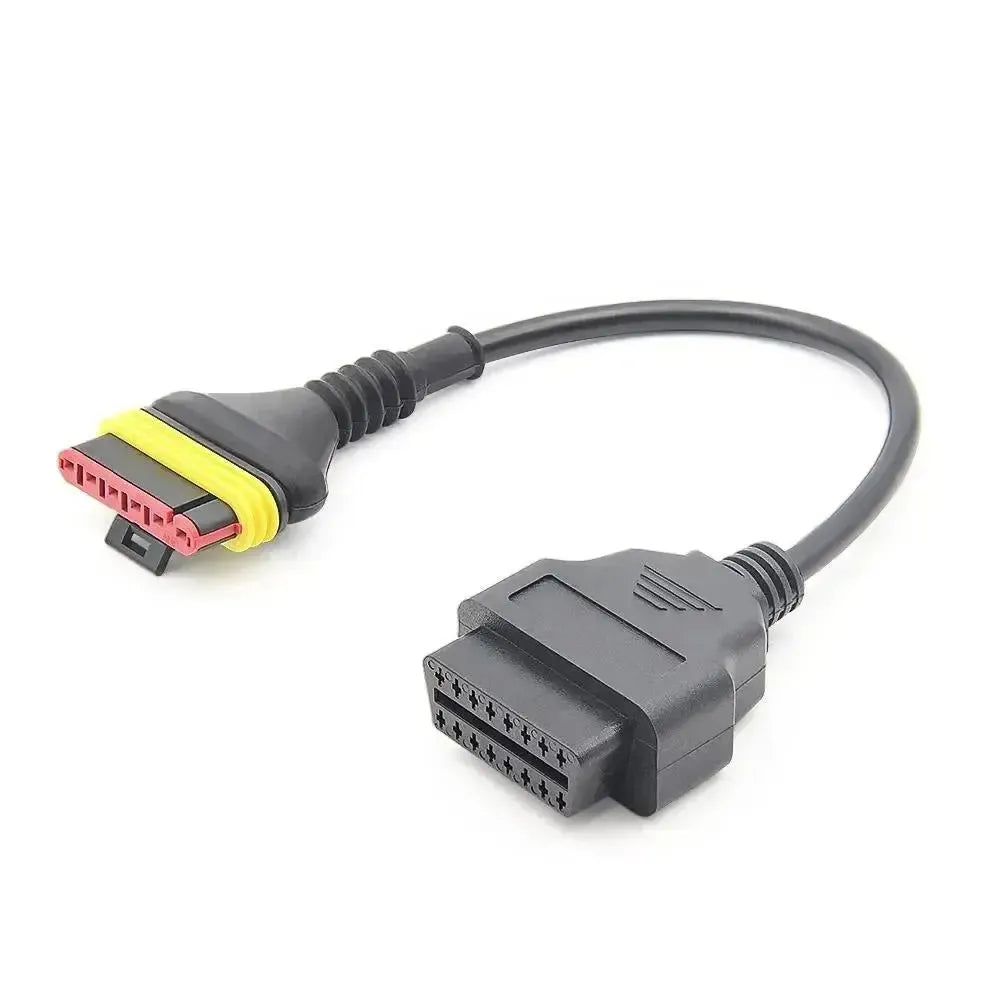

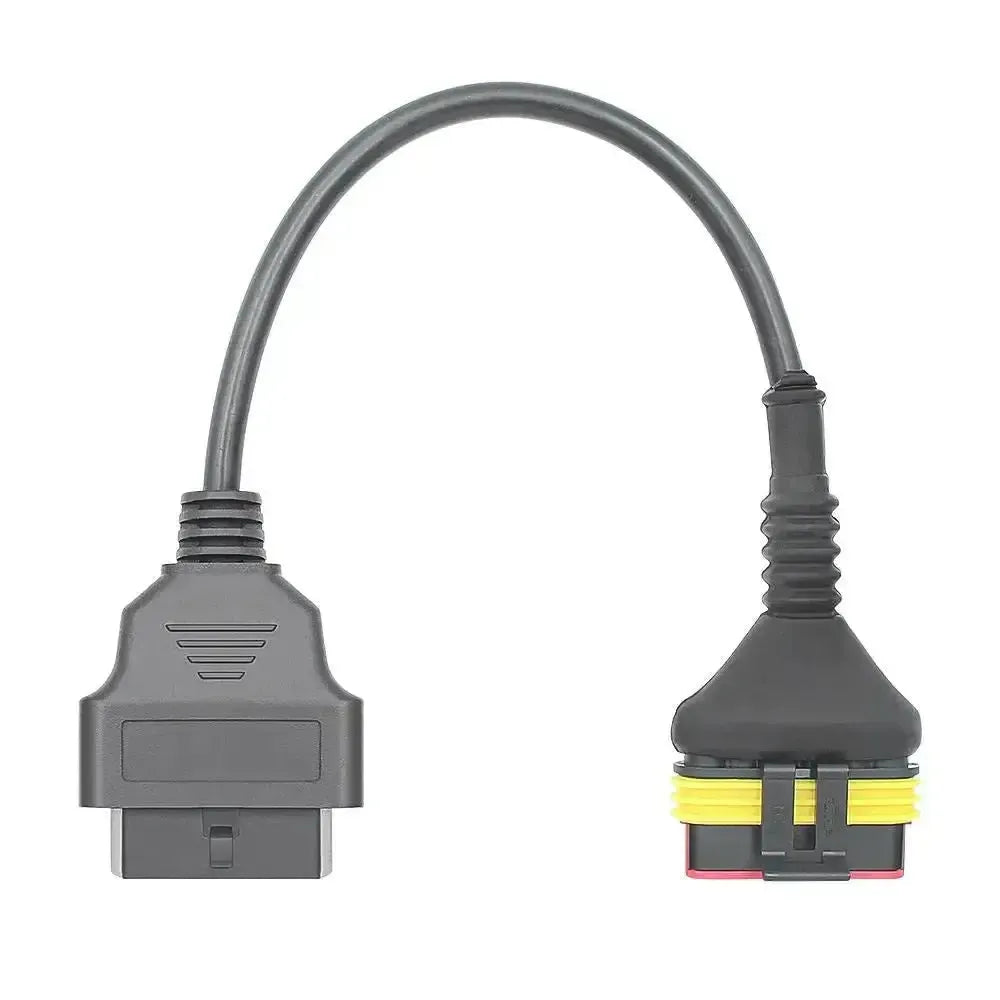

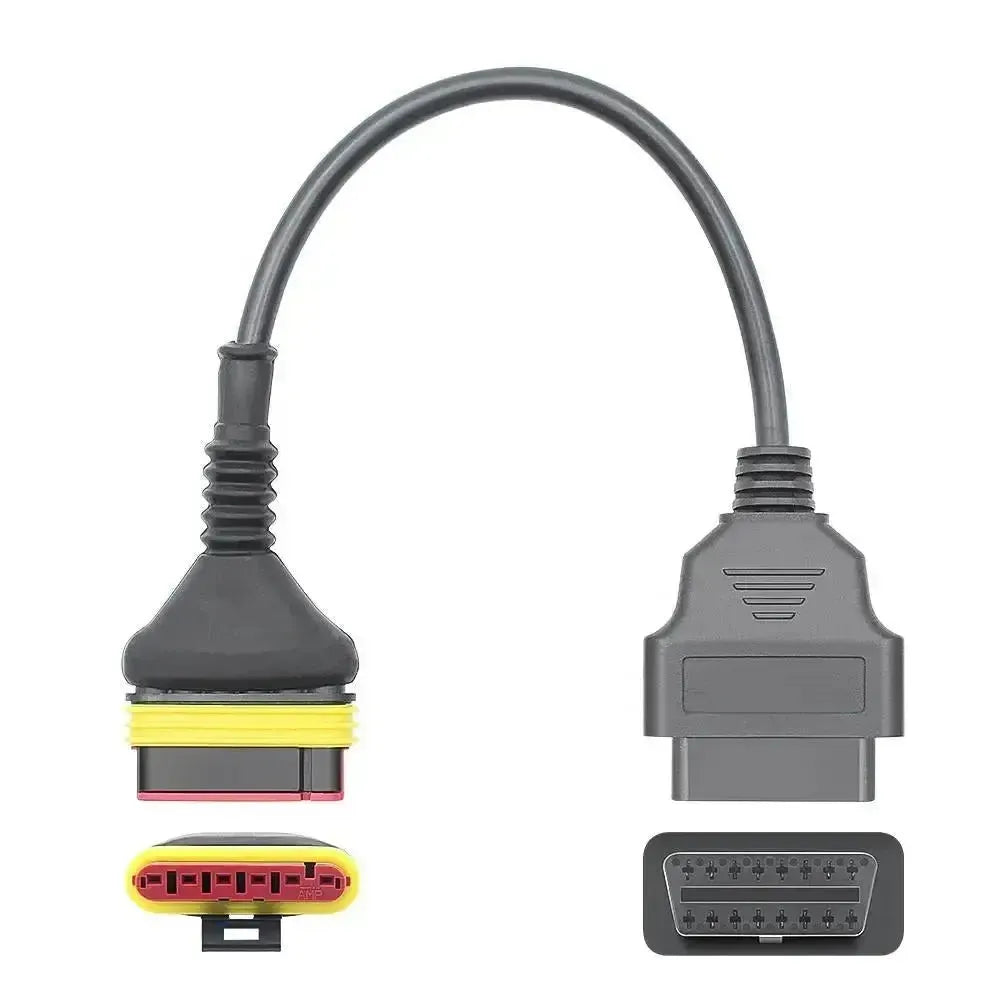

This adapter cable connects the 6-pin Benelli diagnostic port to a scan tool with a 16-pin OBD2 connector. On Benelli motorcycles, the port is usually located under the seat or behind a side cover.
These Benelli models do not have a 16-pin OBD2 port. With the cable, your scan tool can reach the engine management, so you can read and clear fault codes and view live data. The cable only converts the connection physically; the scan tool itself must support Benelli diagnostics.
BENEFITS
POINTS TO NOTE
Applications and functions
The cable is intended for mechanics and motorcyclists who read out Benelli motorcycles with the 6-pin connector.
Systems you can access
- Engine management: Injection and ignition.
- Other systems: Varies by model and equipment.
What you can do
- Fault codes: Read and clear.
- Live data: View current sensor values.
- Identification: Software and hardware version of the ECU.
- Other functions: Where the scan tool offers them.
How to use it
- Locating the port: Find the 6-pin plug under the seat or behind a side cover.
- Connecting: Insert the 6-pin plug into the port.
- Connecting the scan tool: Connect the 16-pin plug to the cable.
- Ignition on: Switch the ignition on, without starting the engine.
- Reading out: Select Benelli, the model and the system.
Compatible vehicles and applications
The determining factor is the 6-pin Benelli diagnostic port. The cable is suitable for the following Benelli models that have that port:
Benelli:
- TRK 502: From 2017.
- Leoncino 500: From 2017.
- 302R: Versions with 6-pin plug.
Package contents
- 1x Benelli 6-pin OBD – 16-pin OBD2 Adapter Cable | Motorcycle
Technical specifications
General
- The brand of the cable or adapter. It often has to match the brand of your diagnostic tool.Brand
- AsTools
- The type of product: a separate adapter cable, an adapter without a cable or a complete set.Product type
- Adapter cable
Connections
- The connector that plugs into the diagnostic port of the vehicle or machine. It must fit exactly.Vehicle-side connector
- 6-pin Benelli
- The connector on the side of your diagnostic tool or interface. Usually a 16-pin OBD2 connector.Tool-side connector
- 16-pin OBD2 (J1962)
Other specifications
- Application
- Benelli motorcycles with the 6-pin diagnostic connector
- Device-side connector
- 16-pin OBD2 (J1962)
- Operation
- Passive, no protocol conversion
