AsTools  |  SKU: A0118-2

MINI-VCI J2534 | Interface Cable

5,0 1 review
€26,95 incl.
€19,95 incl.
€16,49 excl.

Warranty directly via AsTools

We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.

Easy returns

You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

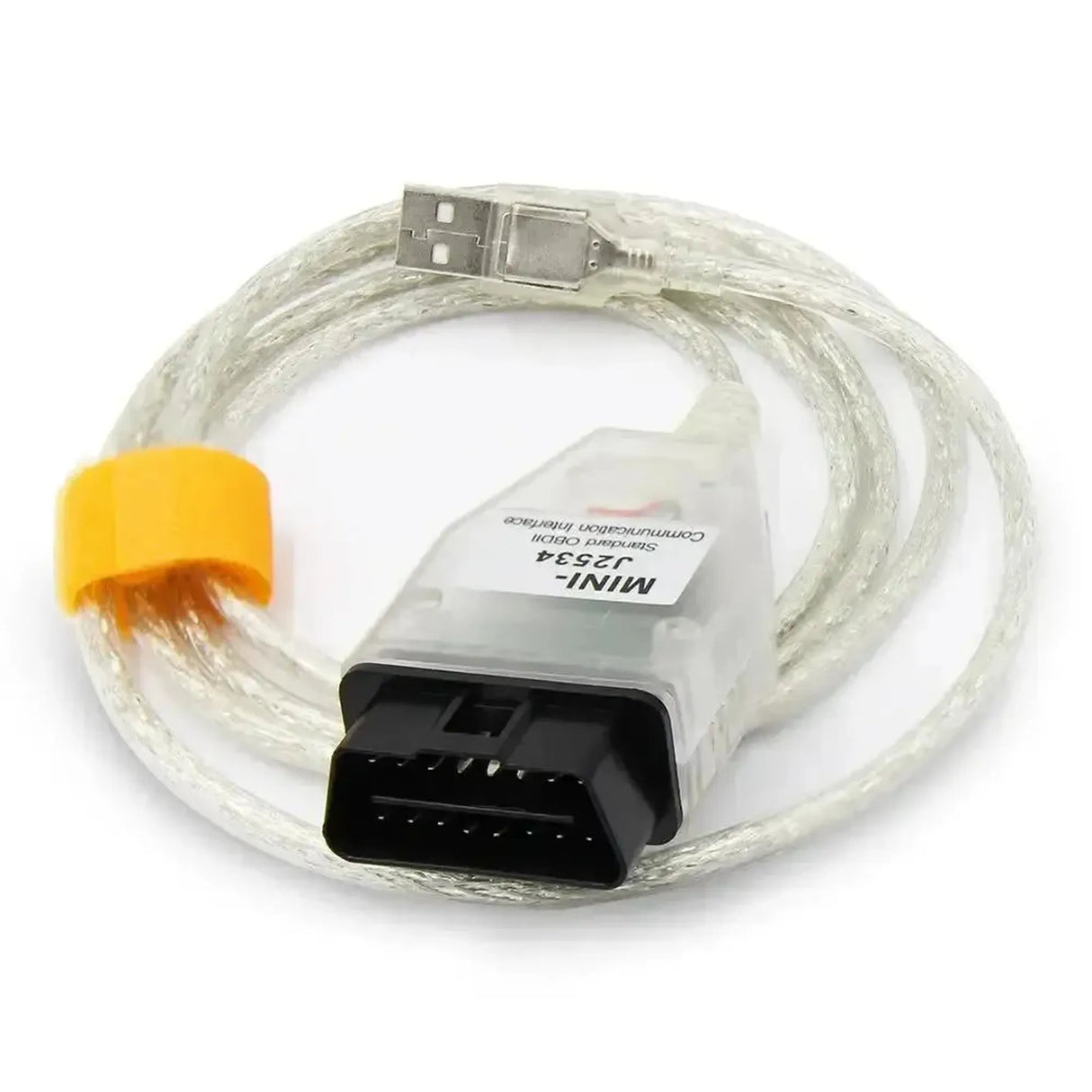

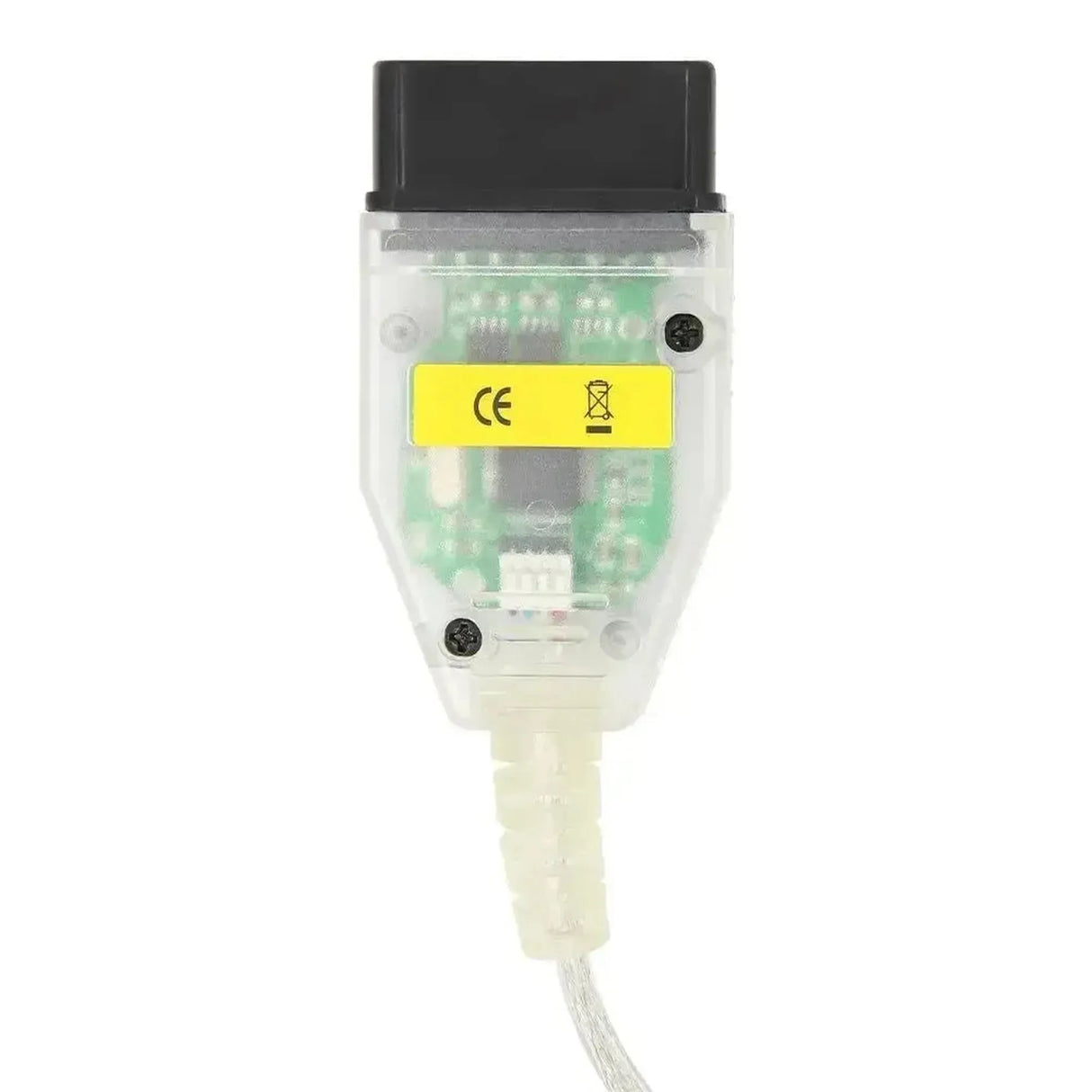

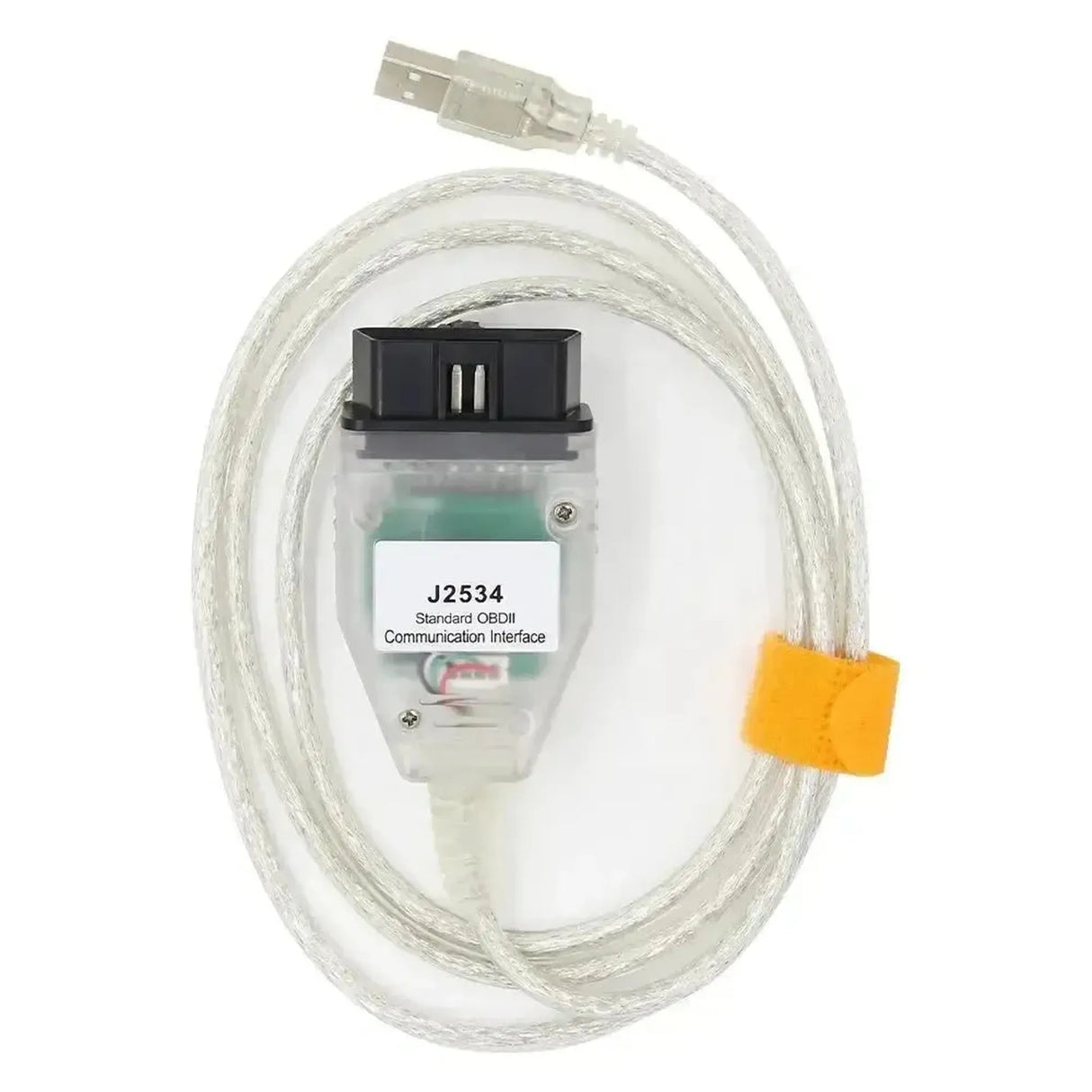

The MINI-VCI J2534 interface cable is a vehicle-specific communication interface designed for the physical connection between a computer and the vehicle's diagnostic port. This diagnostic cable uses a standard 16-pin OBD2 connector on the vehicle side and a USB Type-A connector on the PC side. The connection facilitates direct serial data transfer, enabling external reading, coding, and programming of vehicle modules. This type of cable is specifically designed for use as a pass-thru device in combination with specific dealer-level factory software.

Technically, the interface cable functions as a bridge between the internal vehicle networks and the external diagnostic software by operating according to the SAE J2534 pass-thru standard. During the diagnostic process, the integrated chipset, such as an FTDI controller, translates the vehicle signals into USB data streams processed by the computer software. Communication occurs via various hardware protocols, including CAN, K-Line, and SAE J1850. This ensures that a diagnostic technician can use the interface to establish a bidirectional communication session with the control units, request current data streams, and write new module configurations during the work.

ADVANTAGES

✔ Supports data transfer via the SAE J2534 pass-thru protocol standard.
✔ Compatible with a wide range of networks, including CAN and K-Line.
✔ Equipped with an integrated FTDI chipset for stable serial communication.
✔ Enables bidirectional control via compatible vehicle diagnostic software.

KEY POINTS

✕ Not suitable for heavy ECU flash procedures due to limited data bandwidth.
✕ The drivers require manual configuration on 64-bit operating systems.
✕ Supports only an input voltage of 12 Volts and is unsuitable for 24V electrical systems.
✕ Lacks support for the modern DoIP (Diagnostics over Internet Protocol) network.

Applications and functionalities

The MINI-VCI J2534 offers a range of diagnostic functionalities for thorough analysis of vehicle networks and control units. The cable forms the physical layer to forward commands from the software to the vehicle.

  • Read and Clear Fault Codes: Communicating with electronic control units (ECUs) to scan, identify diagnostic trouble codes (DTCs), and reset the associated fault indicators.
  • Live Data Display: Real-time monitoring of input signals and measured values, such as battery voltage, intake air temperature, fuel pressure, and engine speed for dynamic diagnostics.
  • Actuator Tests: Manually controlling specific vehicle components (such as EGR valves, relays, or injectors) via the software to verify physical and electronic operation.
  • Perform Maintenance Resets: Digitally resetting service intervals and inspection warnings in the instrument cluster after completing maintenance work.

Special features and capabilities

For advanced users and diagnostic technicians, the interface cable unlocks various programming and calibration options that go beyond standard OBD2 functionality.

  • Module Coding: Adjusting hexadecimal values within a control unit to learn new configurations, hidden functions, or subsequently installed components.
  • Key Programming: Registering new or replacement transponders in the immobilizer system (Immobilizer ECU) via the secure dealer access in the software.
  • Steering angle sensor calibration: Performing a learning procedure to re-establish the zero position of the steering angle sensor (SAS) in the ABS/ESP module after work on the steering system.
  • Pass-thru communication: Direct forwarding of raw data requests from specific PC software to the CAN bus network according to the industry standard J2534-1.

Compatible vehicles

This interface cable is specifically optimized for communication with vehicle models from the manufacturers below equipped with a 16-pin OBD2 port (DLC3).

Toyota:

  • All passenger cars and light commercial vehicles: (1996 - present)

Lexus:

  • All models: (1996 - present)

Scion:

  • All models: (Production years until brand discontinuation)

Compatible software and operating systems

A PC with suitable diagnostic software and the correct hardware drivers is required for the MINI-VCI J2534 to function.

Compatible software:

  • Toyota Techstream (TIS): Full vehicle diagnostics, active tests, calibrations, and module programming.

Operating systems:

  • Windows: XP, 7 (32-bit is strongly recommended for maximum firmware stability), 8, 10 (with manual 64-bit registry configuration).
💡
Good to know: When installing on a 64-bit Windows system, ensure the driver is correctly configured in the registry so the software recognizes the cable as a J2534 pass-thru device.

Package Contents

  • 1x MINI-VCI J2534 | Interface cable
  • 1x CD with drivers

Technical specifications

Specification Description
Product brand MINI-VCI
Product model J2534
Product category Interface cable
Vehicle connector 16-pin OBD2 (SAE J1962)
Computer connector USB Type-A
Supported protocols K-Line ISO 9141, KWP 2000 ISO 14230-4, SAE J1850 PWM/VPW, CAN 2.0B ISO 11898, CAN ISO 15765-4
Communication standard SAE J2534-1 Pass-Thru

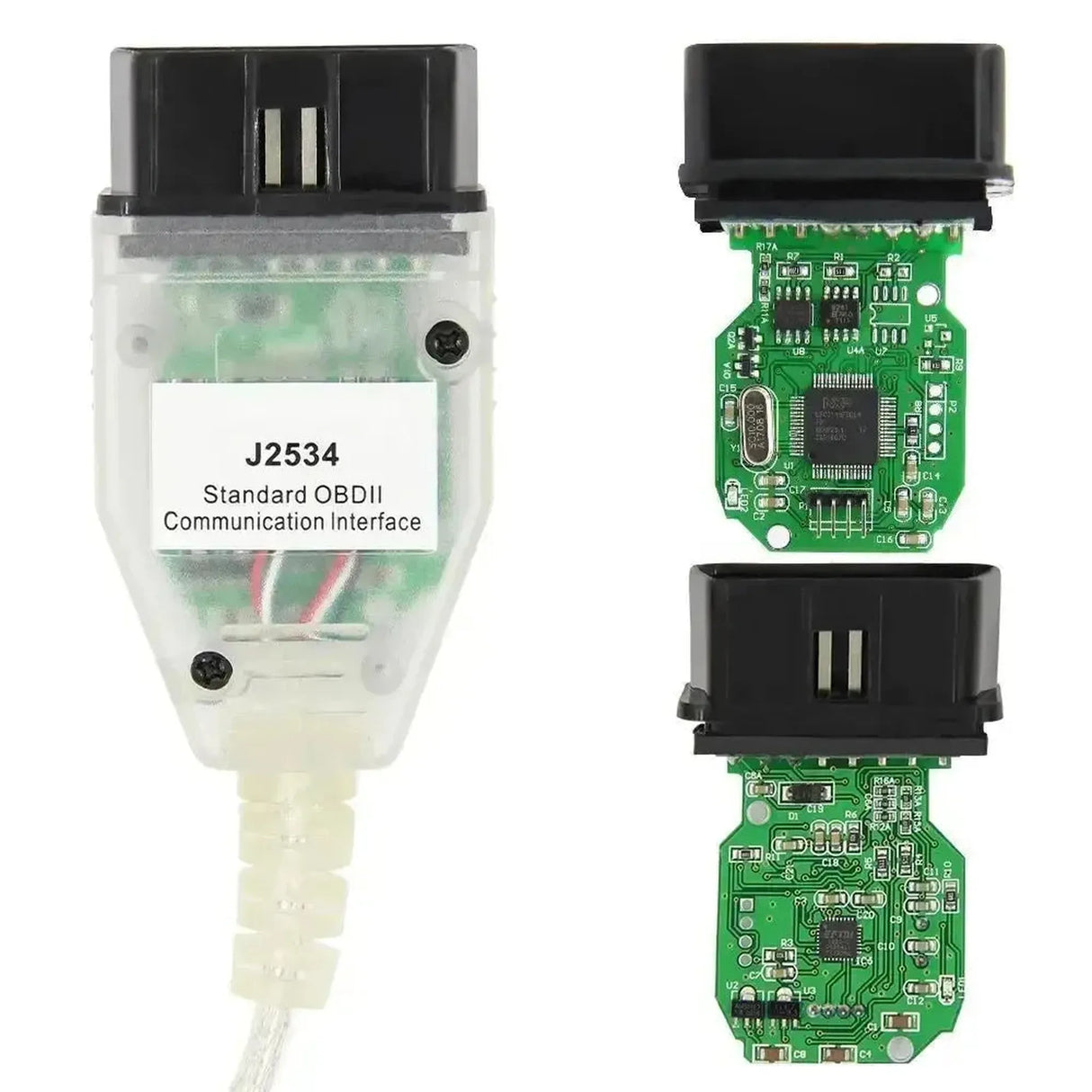

Internal chipset FTDI chip (FT232RL or FT232RQ)
Operating voltage 12V (power from vehicle OBD port)
Cable length Approximately 1.5 meters
