The OBDSTAR CAN Direct Kit is the cable set that allows you to bypass the gateway module. Modern vehicles place a gateway between the OBD port and the rest of the network to shield traffic; this prevents you from accessing control modules via the diagnostic connector. This kit provides direct access to the CAN-bus.
The primary application is proximity key programming for 4A and 8A keys, with complimentary PIN code extraction and support for all keys lost scenarios. The kit features a modular design, allowing you to connect additional ECU cables; the supplied Toyota-24 and Toyota-27 cables cover the standard connections on Toyota and Lexus vehicles from 2018 to 2021.
KEY BENEFITS
IMPORTANT NOTES
Applications and functionality

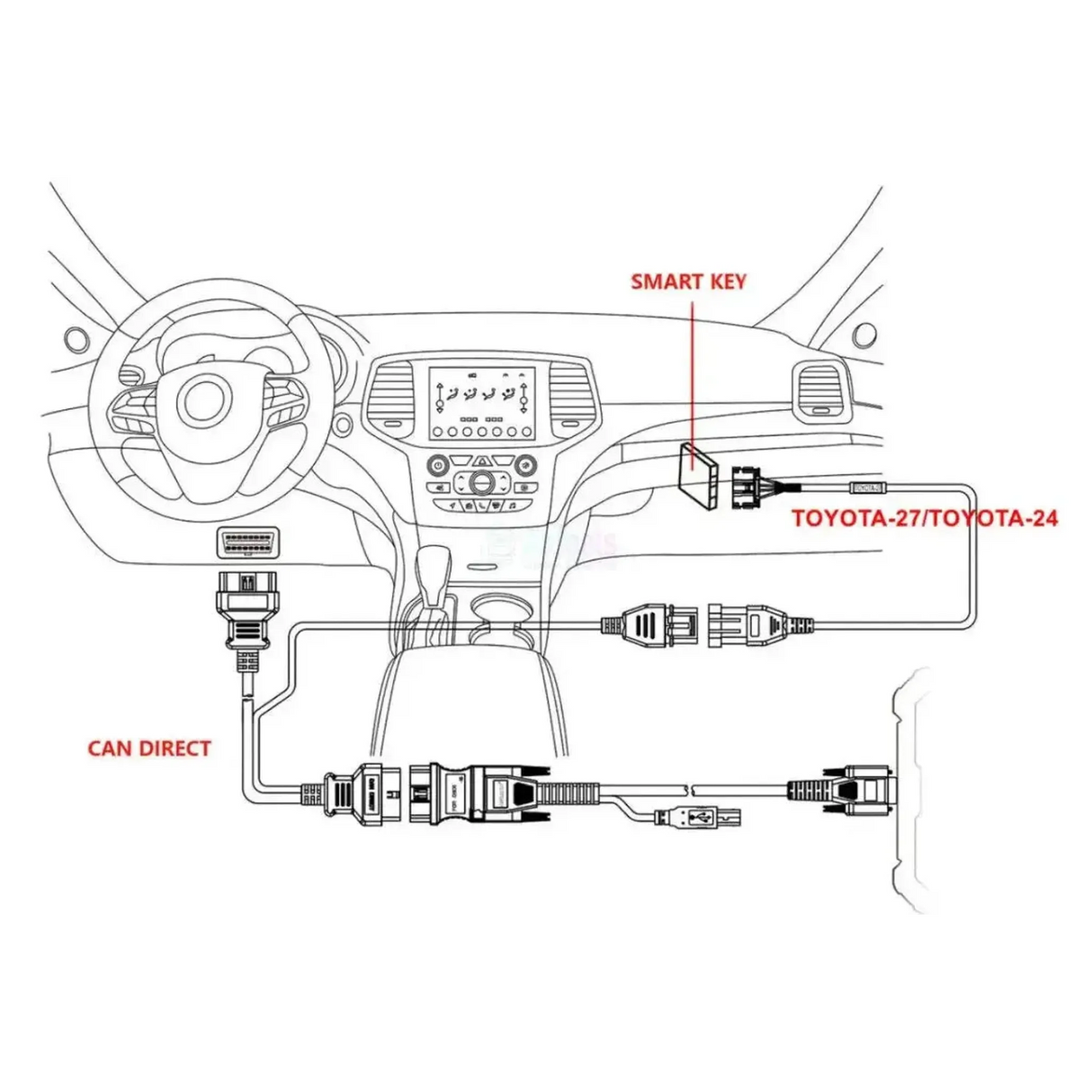

The cable set connects directly to the CAN-bus, bypassing the gateway. Your OBDSTAR device executes the procedure; the cables ensure the signal reaches the target.
What you can do with it
- Access beyond the gateway:Read ECU data on vehicles where the diagnostic connector is shielded.
- Programme proximity keys:Learn keys to 4A and 8A systems.
- Extract PIN code:Retrieve the PIN code as part of the procedure.
- Resolve lost key situations:Create a new key when no working key remains.
Compatible vehicles and models
The gateway and key type determine compatibility, not the model alone.OBDSTAR specifies Toyota and Lexus models from 2018 to 2021.
- Toyota:Corolla in multiple variants, Levin, Allion, Livin, Camry, C-HR, Izoa, Prius, Highlander, RAV4, Avalon, Crown, Vellfire, Alphard, Prado and Land Cruiser.
- Lexus:ES, UX, RX, RX450h, LC and LS.
What else you will need
The cable set does not work independently.Below is what else you require.
- An OBDSTAR device with key programming capability:The device that programmes the key and reads the data.
- The correct key type:Determine in advance whether it is 4A, 8A-A8, 8A-A9 or 8A-AA; this determines whether you use the Toyota-24 or Toyota-27.
- Optionally the CAN Jumper:OBDSTAR supplies this as an optional cable; it is not included in this kit.
This kit is sold out and will not be restocked. OBDSTAR has released the CAN DIRECT-V2 as its successor; we stock that model. Check there for more recent versions and the same application.

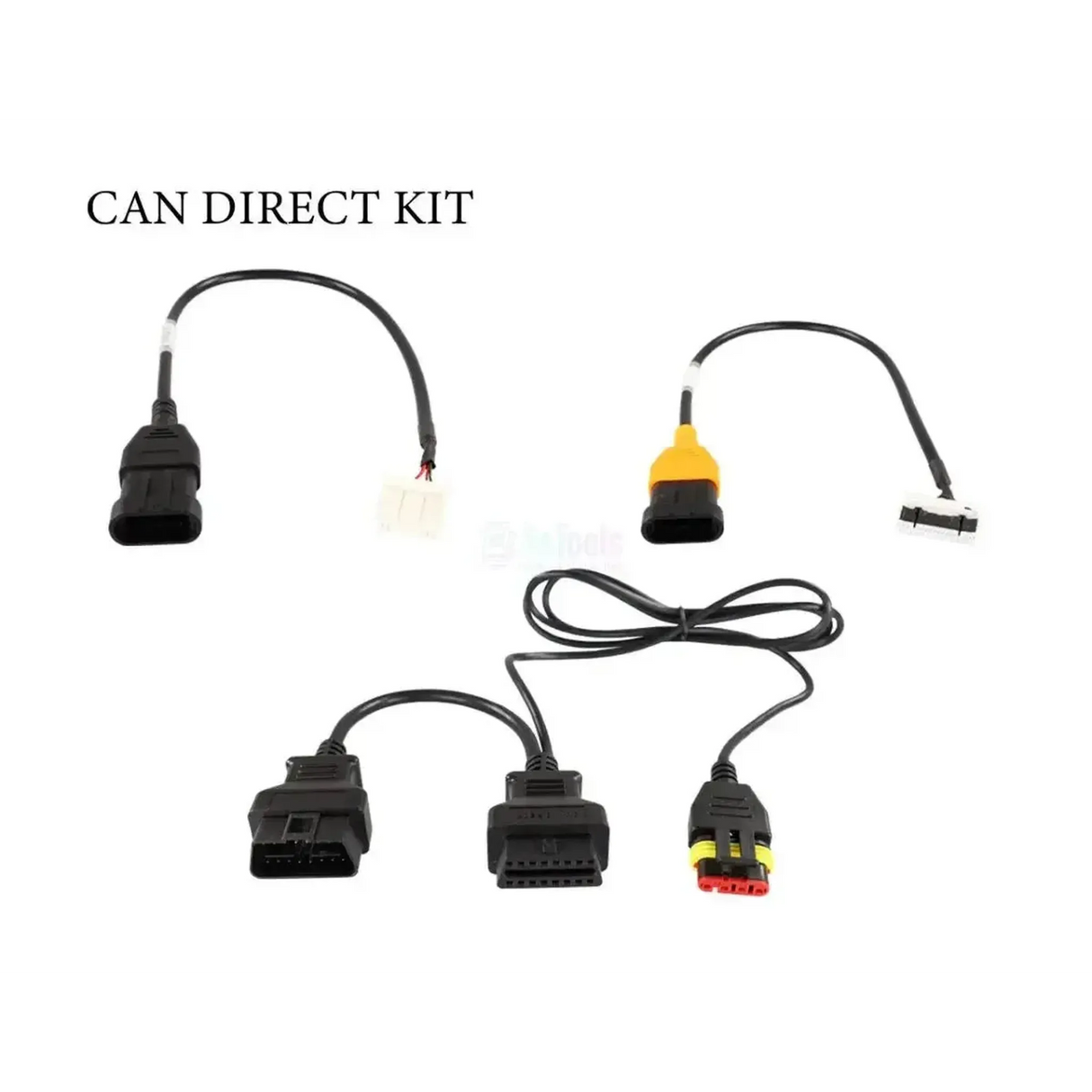

Package contents

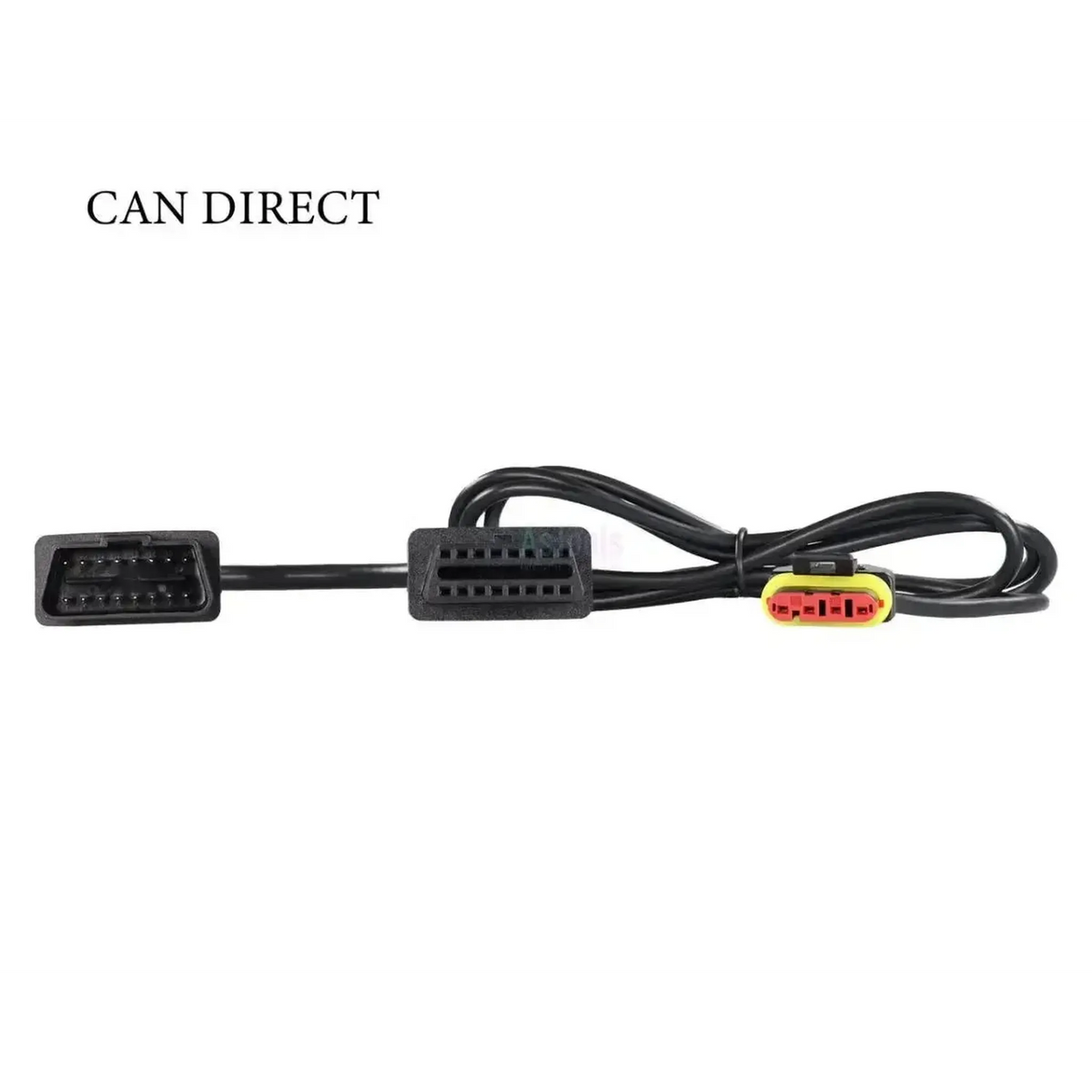

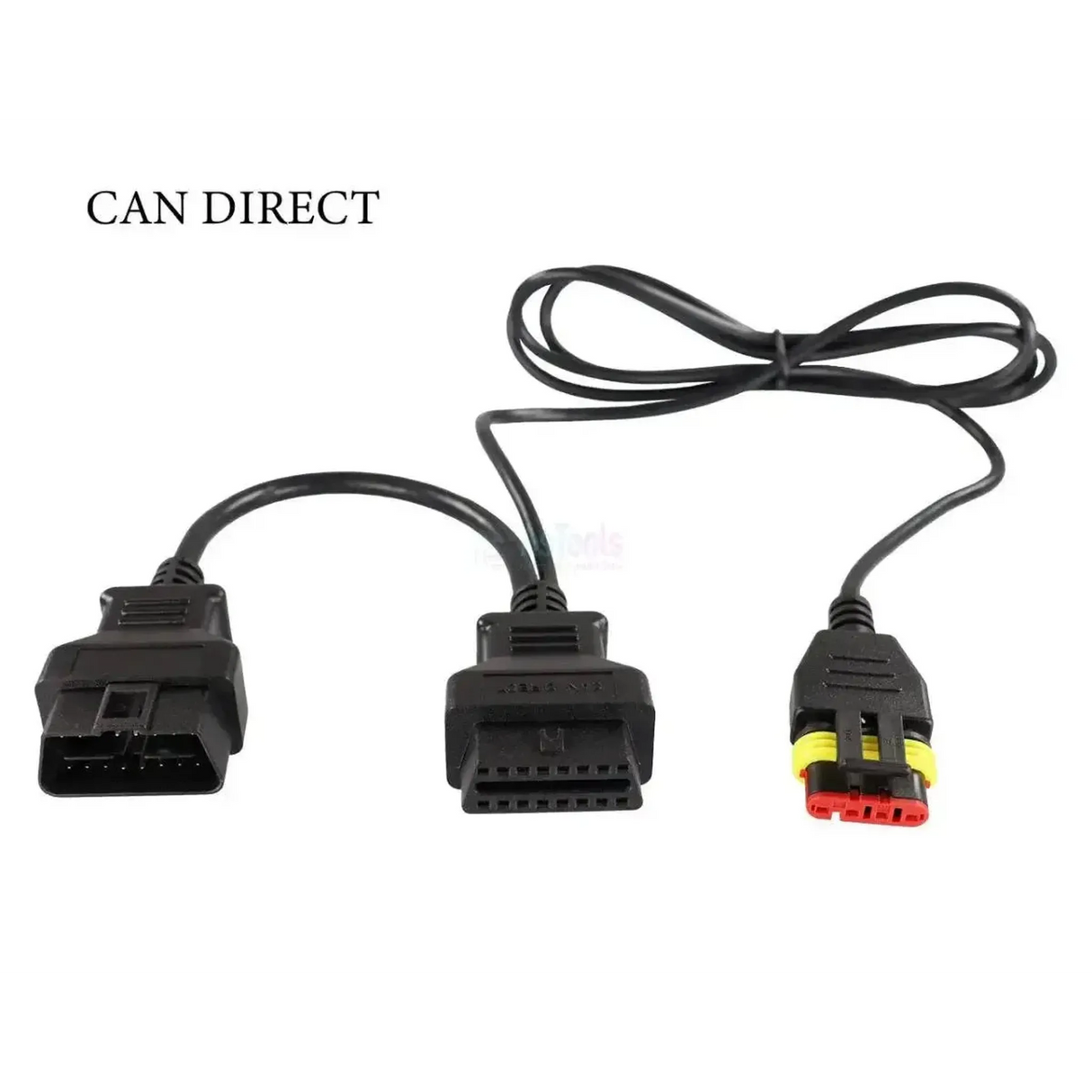

- 1x OBDSTAR CAN Direct main cable

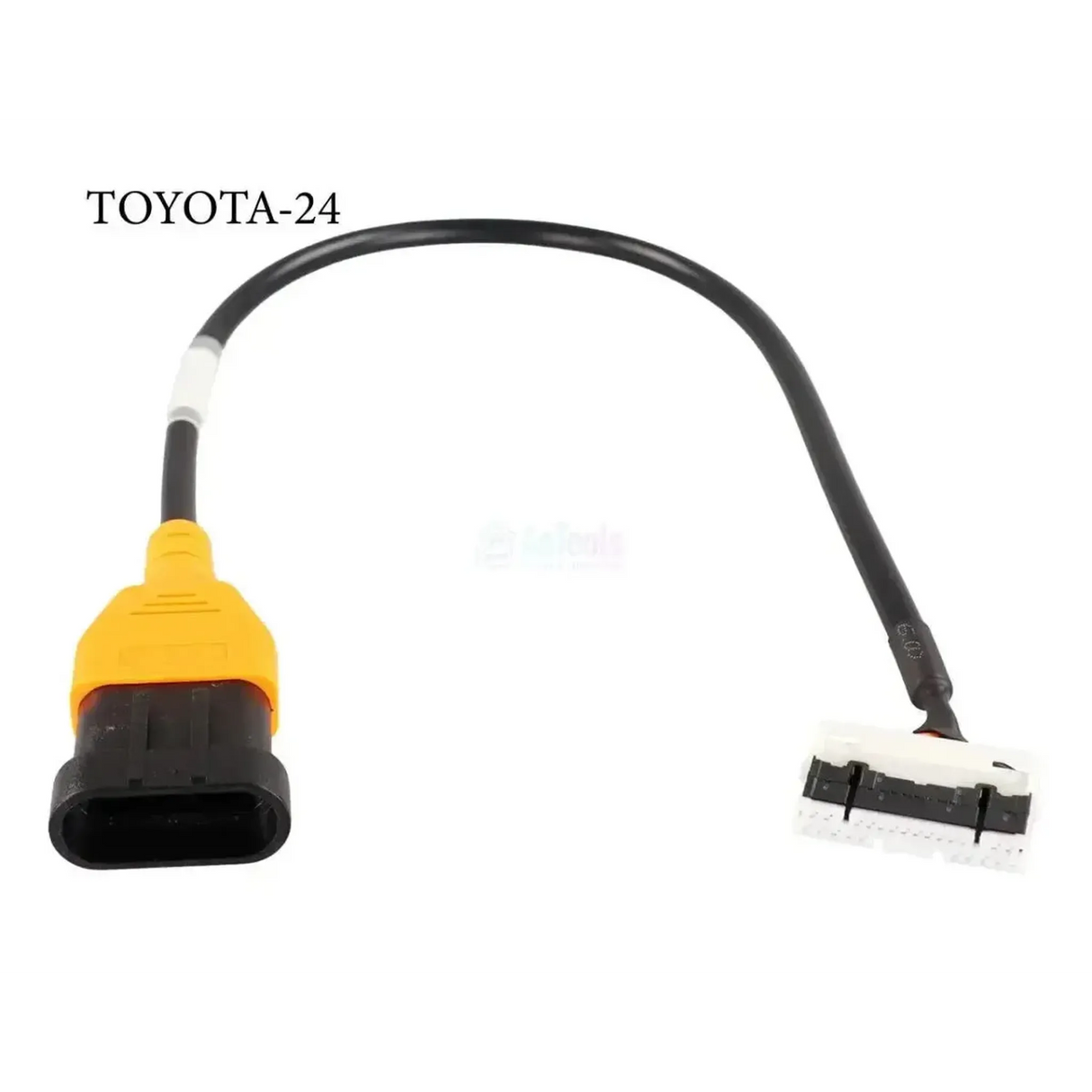

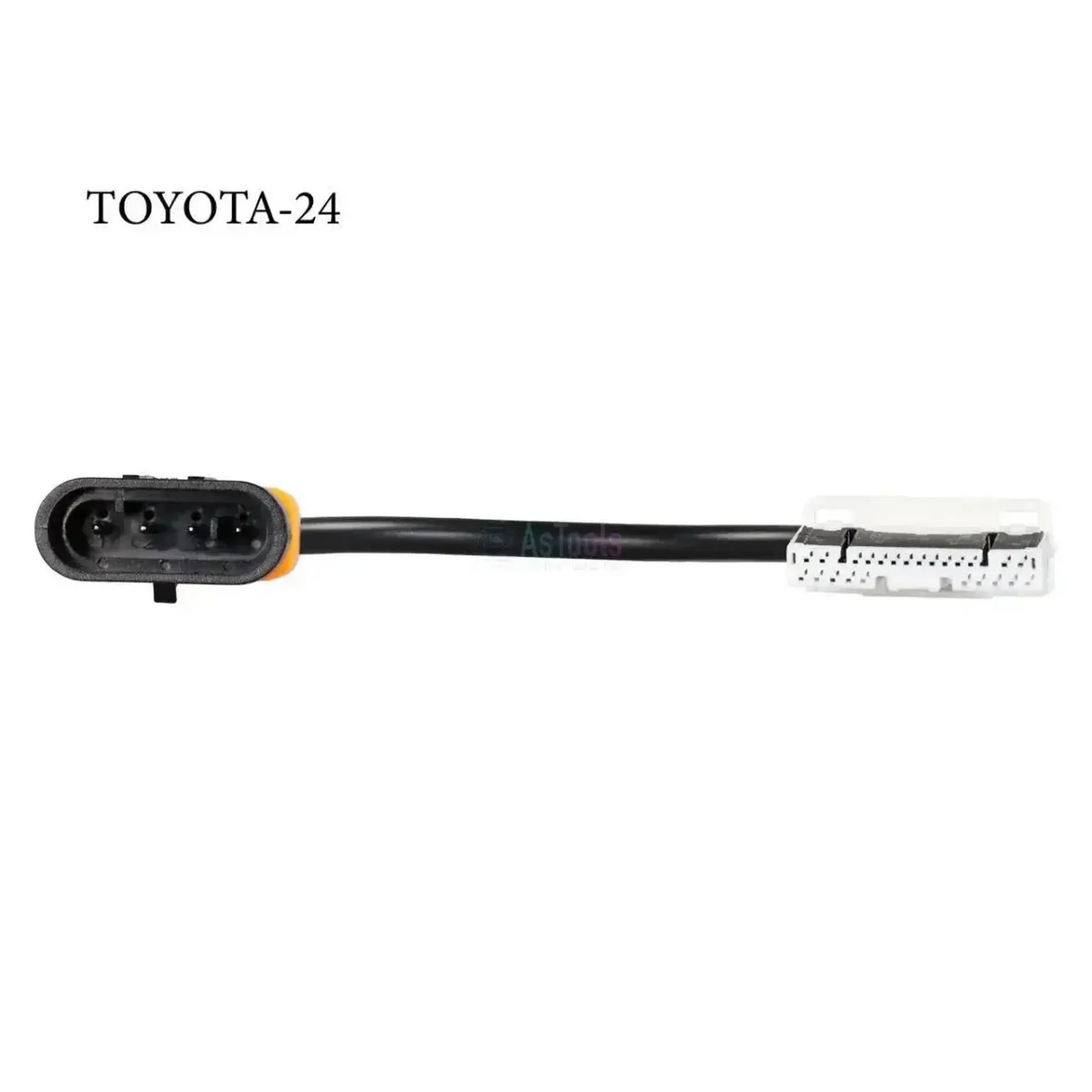

- 1x Toyota-24 ECU cable

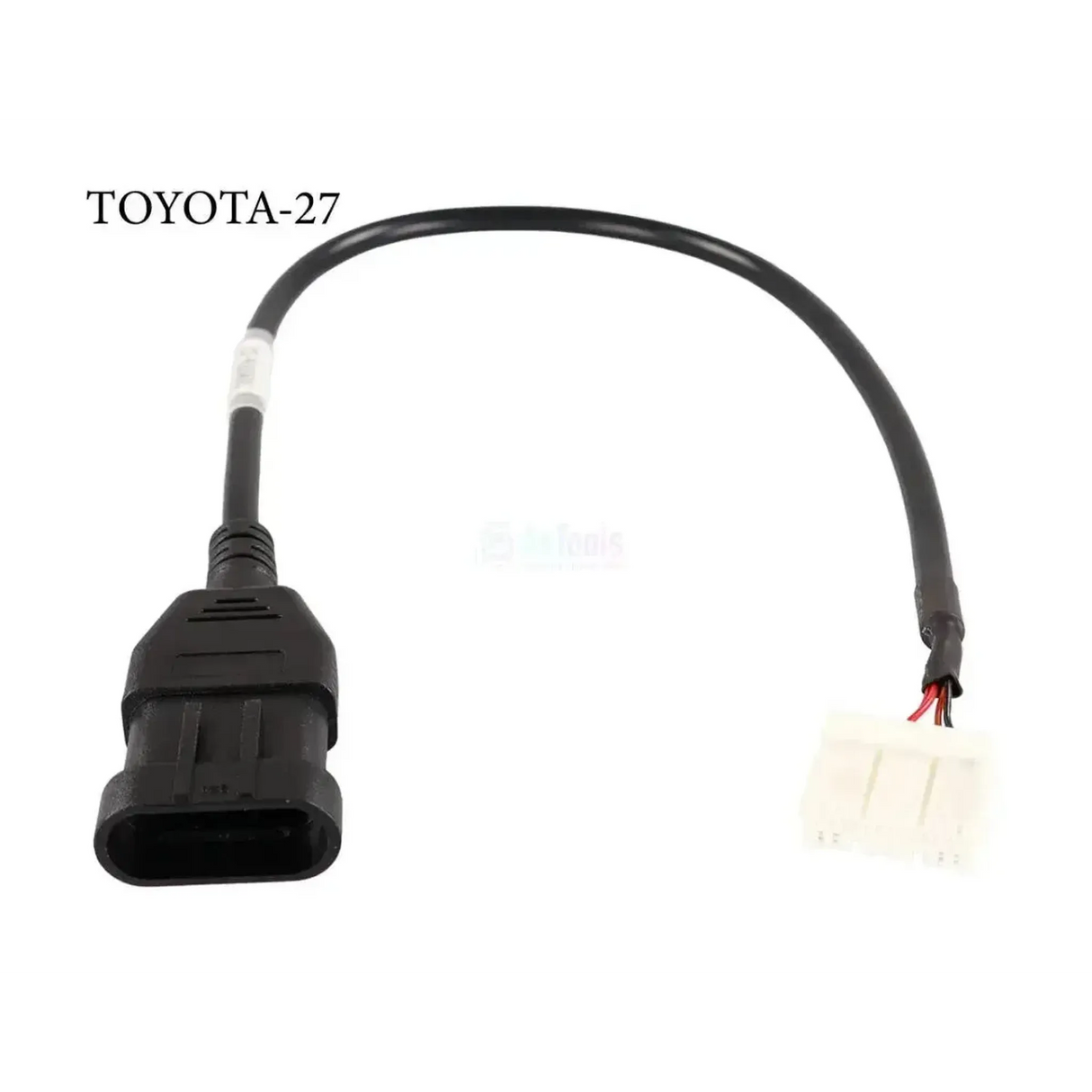

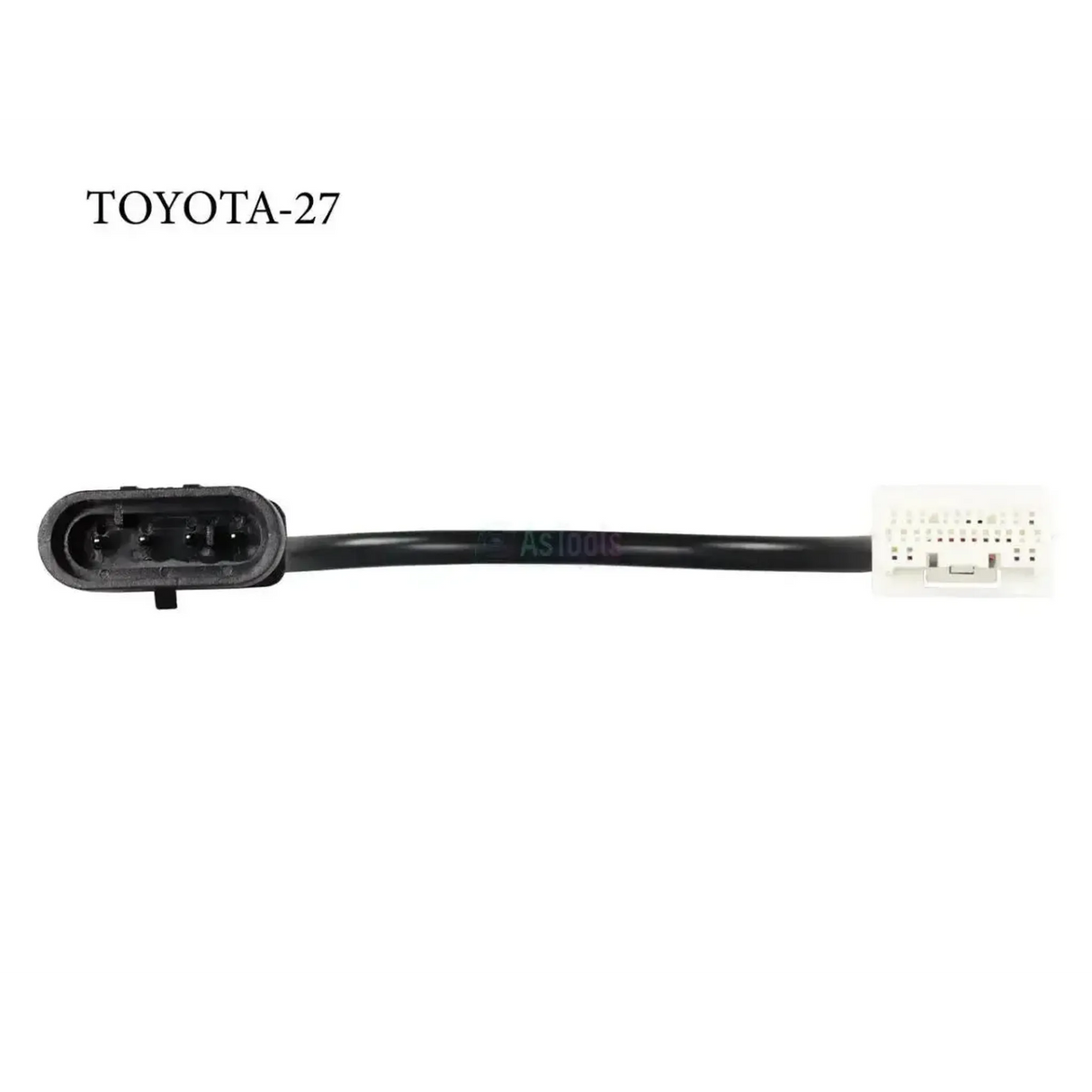

- 1x Toyota-27 ECU cable
Technical specifications
| Specification | Description |
|---|---|
| Brand | OBDSTAR |
| Model | CAN Direct Kit |
| Product type | Cable set for gateway vehicles |
| Official designation | CAN DIRECT KIT |
| Application | Read ECU data and programme proximity keys beyond the gateway module |
| Key types | 4A and 8A |
| Brands | Toyota and Lexus |
| Model range | 2018 to 2021 |
| Optional | CAN Jumper (not included) |
| Successor | OBDSTAR CAN DIRECT-V2 |
| Required for use | An OBDSTAR device with key programming capability |
| Weight | 308 grams (kit shipping weight) |
