\nThe OBDSTAR Key Master 5 is a key programmer for key programming work on passenger vehicles, including motorcycles and electric vehicles. He programs keys and remote controls, key blanks, reads the PIN code, reads the key number and approaches EEPROM memory — and also performs standard OBD II diagnostics with fault codes, adjustments to control modules and reset values.\n

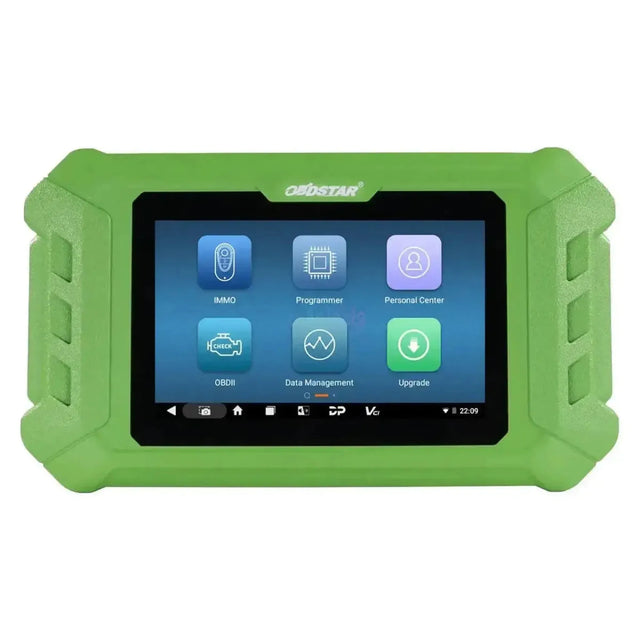

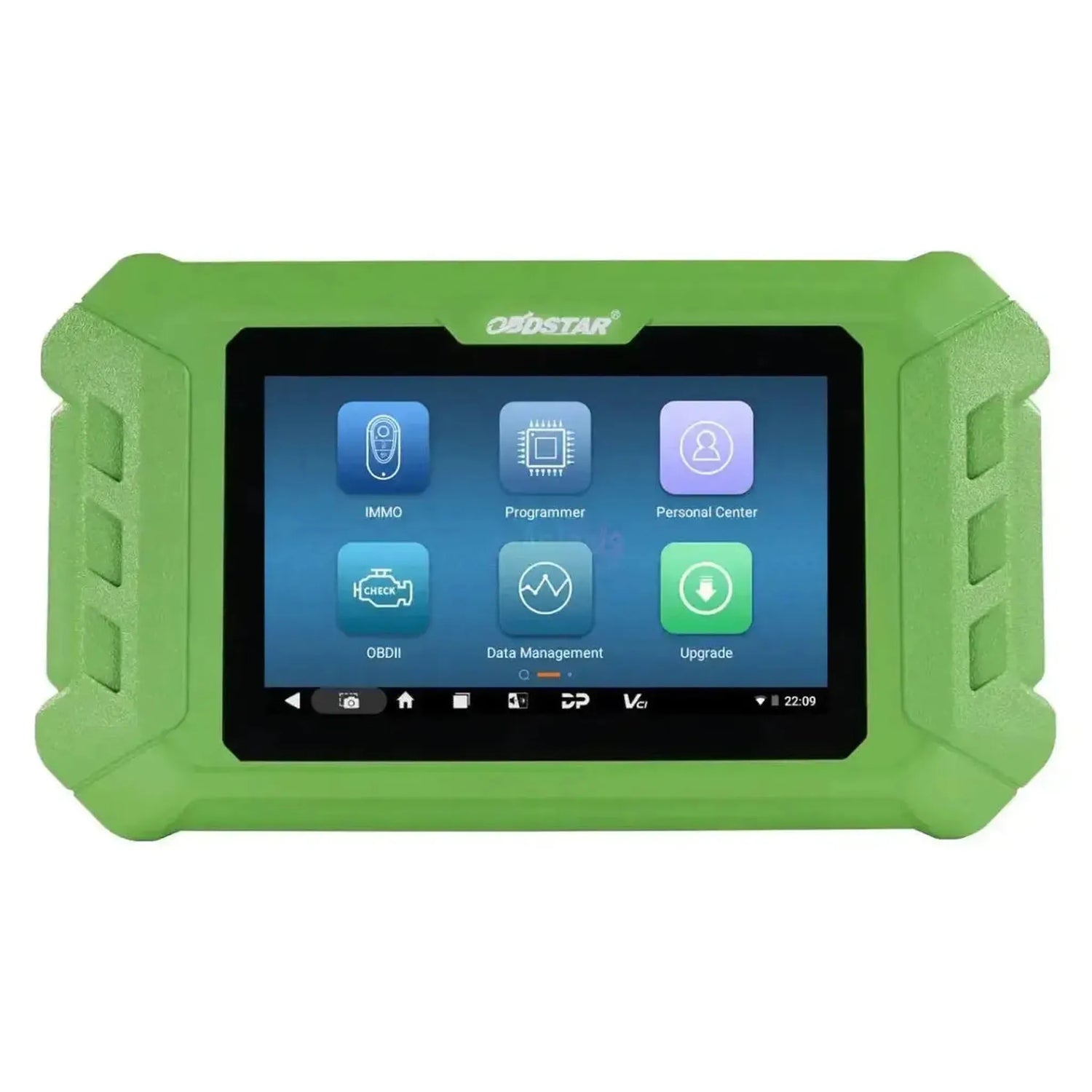

\nWe supply the Full version, and that is precisely the difference: the P001-programmer is included, with the EEPROM adapter, the RFID adapter and the Key Renewal Adapter in a single module. This means you don't need to purchase a separate programmer. The box also contains the C001 and C002 circuit boards, the W001-kabel and four connectors: OBD II-16, Honda-3, Hyundai-10 and Kia-20. The device is a 5-inch Android tablet with a RK3128 quad-core ARM Cortex A7 processor and a 2600 mAh battery.
KEY FEATURES
LIMITATIONS
Applications and functionality
The Key Master 5 centres on immobiliser programming, with diagnostics and memory functions supporting it. Below is what the device can do.
Key programming
- Programming keys: Teaching a new key to the vehicle's immobiliser.
- Programming remote controls:Programme a remote key independently or together with the key.
- Delete keys:Remove lost or stolen keys from the system so they can no longer start the vehicle.
- Read PIN code:Extract the PIN code from the vehicle as a basis for further key programming work.
- Read key number:Check how many keys have been programmed and which ones.
- Reuse keys:Use the Key Renew adapter in the supplied P001 to make a used key functional again.
Memory and diagnostics
- Read and write EEPROM:Read out memory chips, save and write back via the EEPROM adapter in the P001.
- RFID operations:Read and programme transponders via the RFID adapter in the P001.
- Read fault codes:Retrieve stored diagnostic trouble codes from the control modules.
- Adjust control modules:Modify settings in the control modules where the vehicle system permits.
- Reset values:Write reset values after maintenance or component replacement.
- OBD II diagnostics:Standard diagnostics via the OBD port, alongside manufacturer-specific key programming.
Supported vehicle makes
The combination of make, model and year of manufacture determines compatibility, not the make alone.OBDSTAR divides Key Master 5 coverage across three separate lists. Each list is organised by continent and in alphabetical order.
Immobiliser programming — passenger vehicles
Seventy-one makes. OBDSTAR also lists a separate PIN code entry not tied to any single make.
- European:BMW, Fiat, JLR (Jaguar Land Rover), Maserati, Mercedes-Benz, Opel, Porsche, PSA, Renault, Smart, Volkswagen, Volvo
- Asian:Daihatsu, Himiko, Honda, Hyundai, Isuzu, Luxgen, Mazda, Mitsubishi, Nissan, SsangYong, Subaru, Suzuki, Toyota
- American:Chrysler, Ford, GM
- Chinese:Aeolus, BAIC, Bisu, Borgward, Brilliance, BYD, Changan, Changfeng, Chery, Enranger, FAW, Fencon, Foday, Forthing, Foton, Geely, Great Wall, Hafei, Haima, Hawtai, Huanghai, JAC, JMC, Lifan, Lufeng, Lynk&Co, Maxus, Neta, NIO, QNLotus, Qoros, Roewe, SGMW, Soueast, SWM, Trumpchi, Voyah, Xpeng, Yema, ZD, Zhongxing, Zotye, ZZ Mazda, ZZ Nissan
Immobiliser programming — motorcycles
17 makes.
- European:BMW, Ducati, Italjet, Peugeot, Piaggio, Triumph
- Asian: Honda, Kawasaki, Suzuki, Yamaha
- American: BRP, Harley-Davidson
- Chinese: CFMOTO, Haojue, QJMotor, Souo, Voge
Immobiliser bypass — electric vehicle
Three brands, all from China.
- Chinese: Dayun, Li Auto, Seres
Check the distribution carefully. Over seventy vehicle brands in total may appear comprehensive, but the emphasis is firmly on the Chinese market. If you primarily service European and Japanese models, verify that your brands are listed in the European and Asian sections.

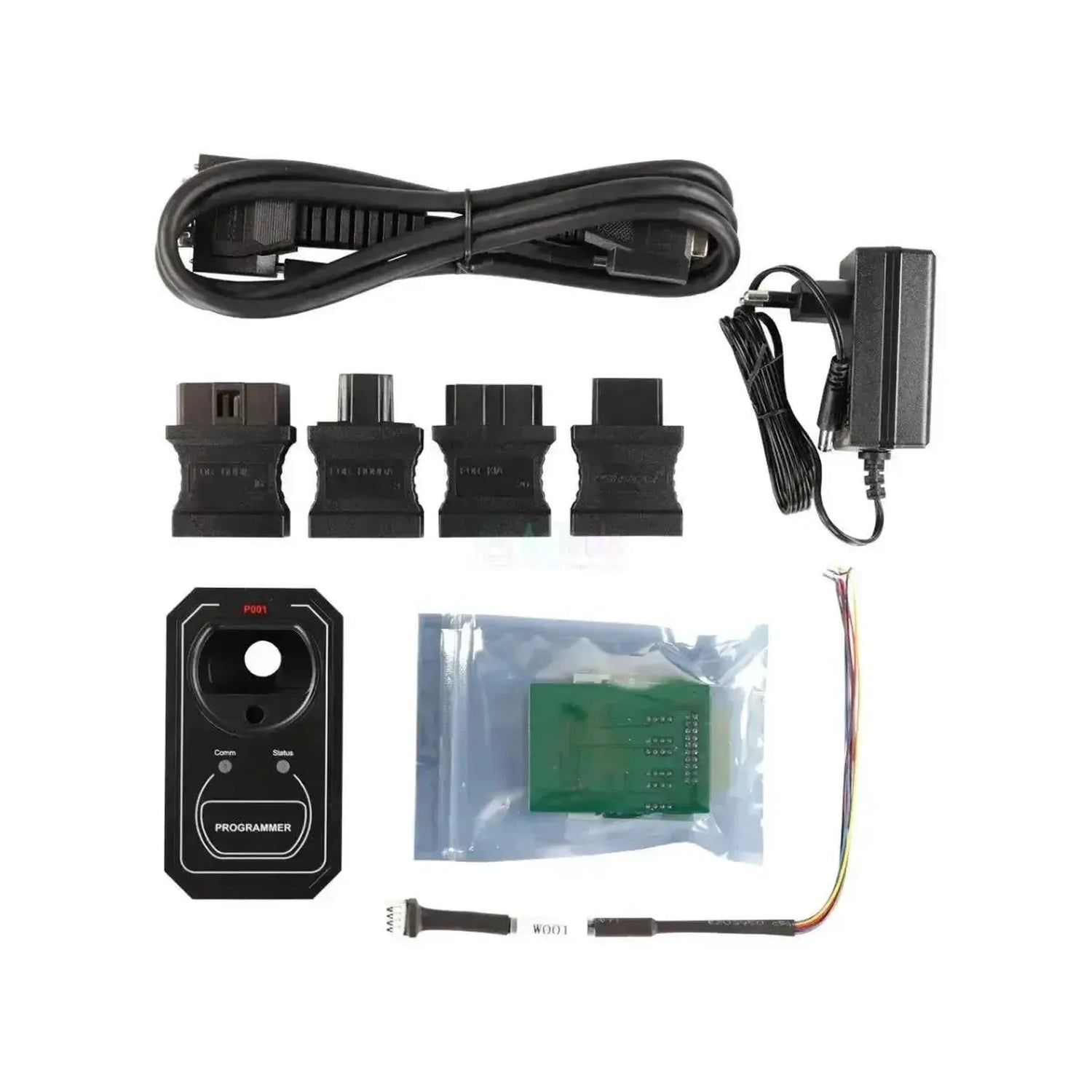

Package contents
We supply the Full version.
- 1x OBDSTAR Key Master 5 key programmer
- 1x DP80 main cable
- 1x 12V2A charger
- 1x P001 programmer (with EEPROM adapter, RFID adapter and Key Renew adapter)
- 1x C001 circuit board
- 1x C002 circuit board
- 1x W001 read/write cable with bonding wire
- 1x OBD II-16 connector
- 1x Honda-3 connector
- 1x Hyundai-10 connector
- 1x Kia-20 connector
Optional additions and expansions
The unit is complete for the work it was designed for. The items below extend its capabilities.
Hardware modules and accessories
The Full version is complete. The hardware listed below extends its capabilities.
- Key SIM key simulator: For situations where all keys have been lost. OBDSTAR specifically lists the Key Master 5 as one of two devices compatible with the Key SIM.
- Brand-specific connectors: For connections beyond the four connectors supplied as standard.
Licence information
- Duration: One year of software updates from device activation.
- What updates include: New vehicle models, expansion of existing brands, additional key procedures and corrections.
- After expiry: The device continues to operate with the last installed version; new models and features become available only after renewal.
- Renewal: Using the OBDSTAR Key Master 5 update licence, available separately in our webshop.
Technical specifications
| Specification | Description |
|---|---|
| Brand | OBDSTAR |
| Model | Key Master 5 |
| Version | Full, including P001-programmer |
| Product type | Key programmer |
| Segments | Passenger car, motorcycle and electric vehicle |
| Immobiliser — passenger car | 71 brands |
| Immobiliser — motorcycle | 17 brands |
| Electric vehicle start interrupt | 3 brands |
| Key programming features | Programme keys and remote controls, erase keys, read PIN code, read key number and reprogramme keys |
| Additional functions | Read and write EEPROM, RFID operations, read fault codes, adjust control modules, reset values and OBD II diagnostics |
| Operating system | Android 5.1.1 |
| Processor | RK3128 quad-core ARM Cortex A7 |
| Display | 5.0 inch capacitive touchscreen |
| Screen resolution | 800 x 480 pixels |
| Battery | 2600 mAh polymer lithium |
| Memory expansion | Micro SD (TF) up to 32 GB |
| Connectivity | WiFi |
| Included | P001 programmer, C001 and C002 circuit boards, W001 cable and four connectors |
| Licence | 1 year software updates from activation |
| Supported languages | Dutch, English, German, Czech, Russian and Greek |
| Operating temperature | -10 °C to 55 °C |
| Storage temperature | -20 °C to 70 °C |
| Dimensions | 198 x 115 x 31 mm |
| Device weight | Approximately 700 grams |
| Shipping weight | 1.425 kg |
