AsTools | SKU:
A0136

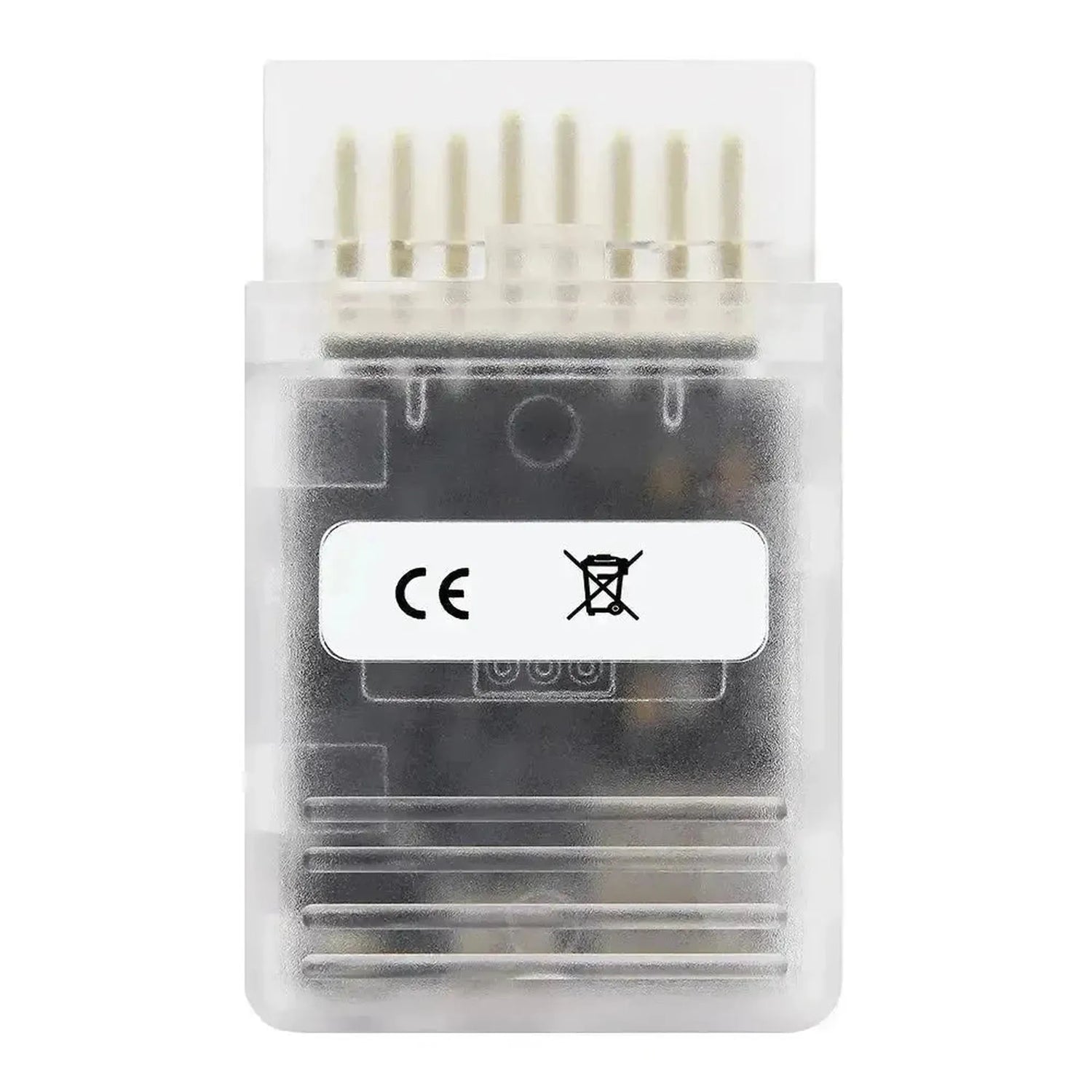

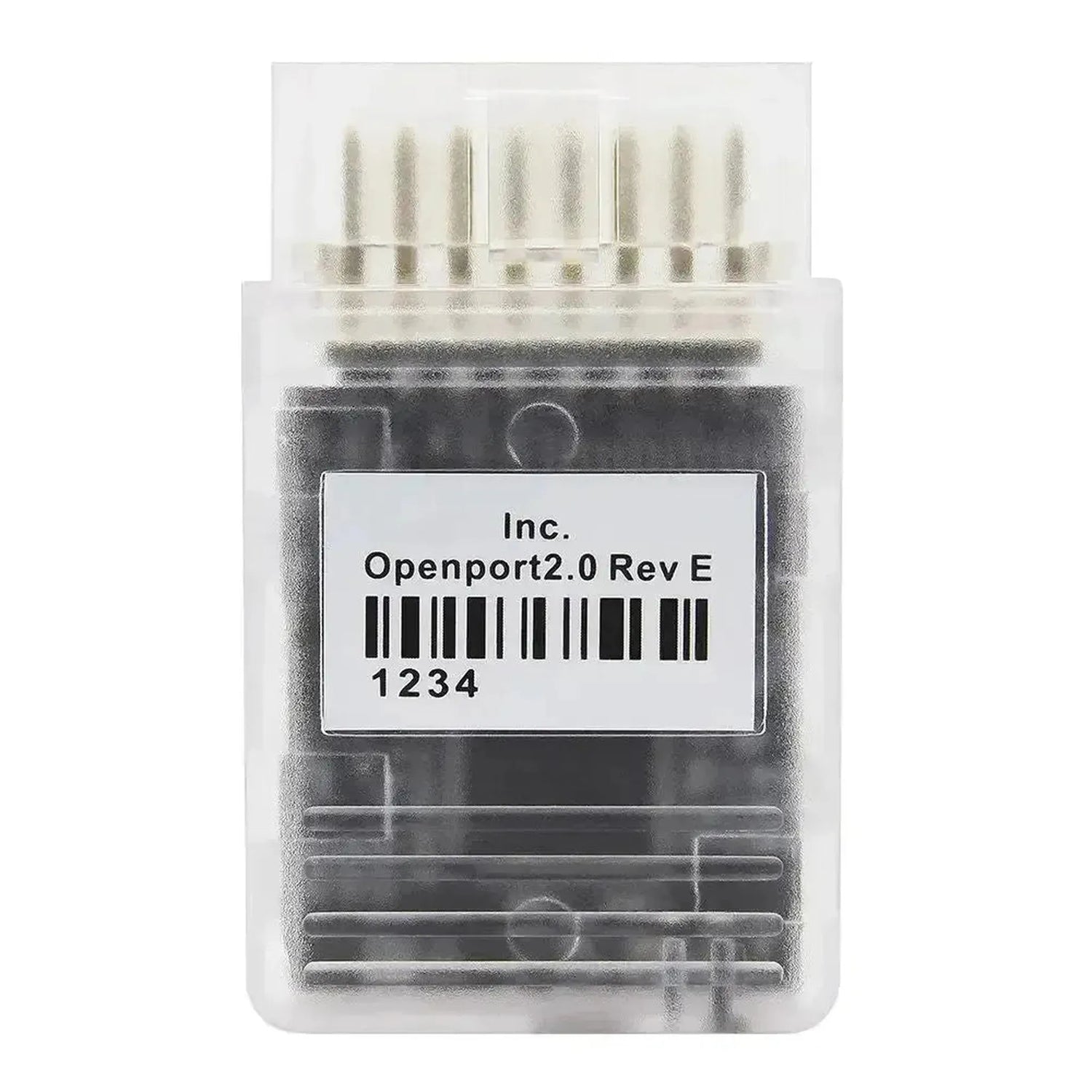

Universal Openport 2.0 | Interface cable
Regular price
€20,95 incl.
€17,31 excl.
Unit price
Translation missing: en.products.product.price.unit_price_separator
Unavailable
Warranty directly via AsTools
Warranty directly via AsTools
We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.
2 years warranty on all products
2 years warranty on all products
All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.
Easy returns
Easy returns
You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.
Professional customer service
Professional customer service
Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!
AsTools | SKU:
A0136
Regular price
€20,95 incl.
€17,31 excl.
Unit price
Translation missing: en.products.product.price.unit_price_separator
Unavailable
The Universal Openport 2.0 is a high-quality interface cable designed for vehicle diagnostics, data logging, and ECU flashing. This Adapter creates a reliable connection between the vehicle’s OBD2 port and an external PC or laptop via USB 2.0. Thanks to support for the J2534 PassThru standard, this interface cable is especially suitable for professional mechanics and tuners who want to read, code, or program vehicle software without relying on brand-specific and expensive diagnostic hardware.
During the communication process, the Openport 2.0 acts as a bridge that translates signals from the vehicle network into understandable data for the diagnostic software. The cable supports a wide range of communication protocols, including CAN 2.0, K-Line, and J1850, enabling smooth and stable data transfer. A key technical feature is the built-in data logging functionality; via a microSD card slot on the Adapter, vehicle parameters can be recorded autonomously without requiring a connected PC. This makes the interface ideal for both static diagnostics in the workshop and dynamic performance tests on the road.
ADVANTAGES
✔
Supports J2534 PassThru for direct communication with OEM software.
✔
Features a microSD slot for PC-independent data logging.
✔
Supports key protocols such as CAN 2.0, K-Line, and J1850.
✔

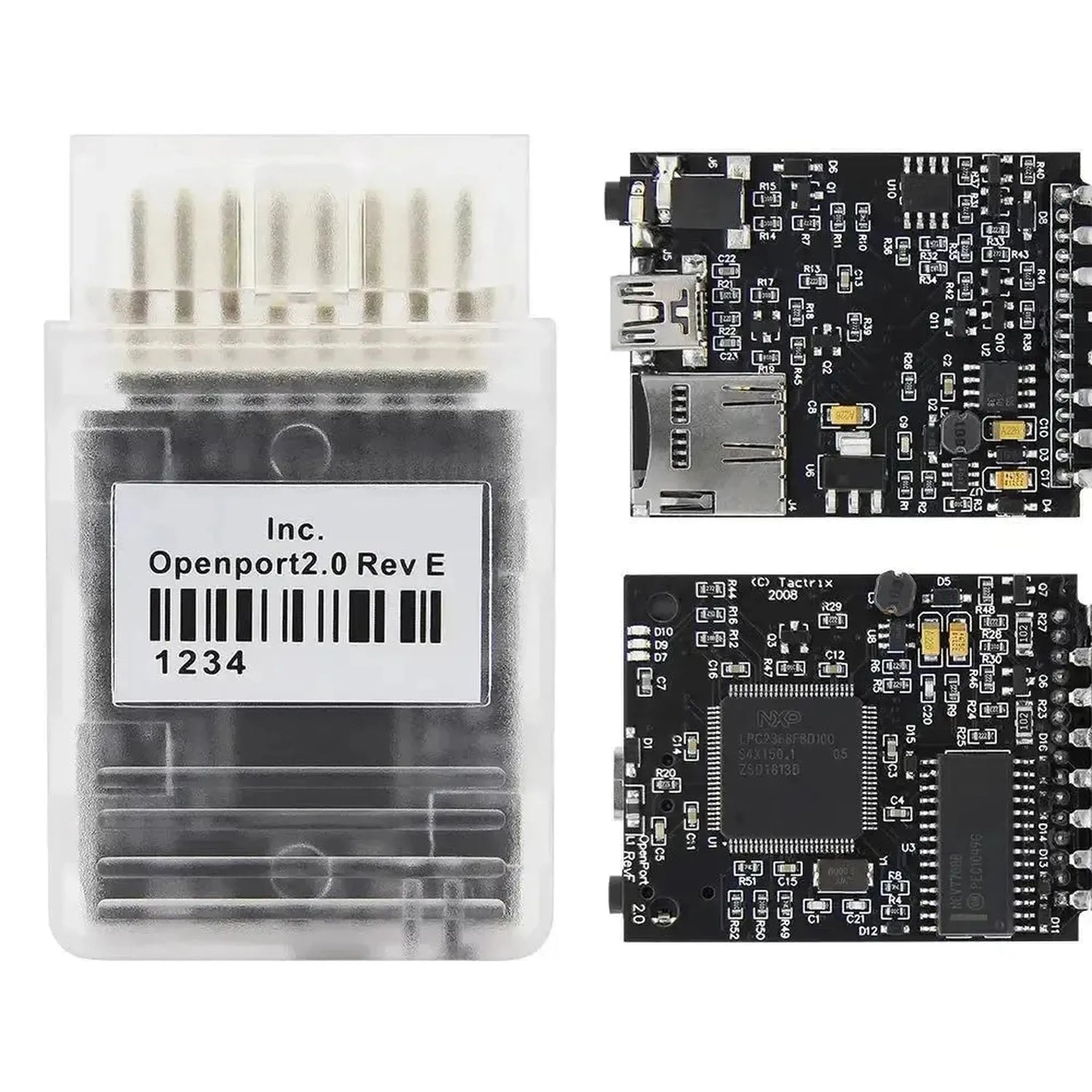

Equipped with a fast 32-bit ARM processor for rapid data processing.
KEY POINTS
✕
Full functionality is highly dependent on the chosen diagnostic software.
✕
ECU flashing via this cable requires specific technical knowledge.
✕
Primarily works via a wired USB connection, no wireless interface.
✕
Not every OEM application guarantees 100% coverage via a universal PassThru Adapter.
Applications and functionalities
The Universal Openport 2.0 is a versatile interface mainly used for engine tuning, firmware updates, and in-depth diagnostics in combination with J2534-compatible software.
- ECU Flashing and programming: Enables rewriting and optimizing the engine control unit (ECU) and transmission control unit (TCU) by reading and writing ROM files.
- J2534 PassThru diagnosis: Acts as a bridge between the vehicle and brand-specific OEM diagnostic software for performing module tests and service interventions.
- Read and clear fault codes (DTC): Provides extensive access to vehicle modules for detecting, identifying, and clearing diagnostic trouble codes.
- Live datastreaming: Translates sensor data into real-time measurements on the PC, enabling real-time monitoring of engine performance during operation.
Special features and capabilities
This interface cable stands out due to various hardware features aimed at advanced users and chiptuners.
- Standalone datalogging: By using the built-in microSD card slot, the cable autonomously records sensor values and parameter data without a PC connected.
- Power supply and ground injection: The interface is capable of applying GND or a programmable 5V-25V voltage to specific OBD pins (such as pin 1, 3, 9, 11, 12, or 13) via a 2.5mm stereo jack for programming modes.
- Multicolor status indication: Equipped with integrated RGB LEDs that provide the user with immediate visual feedback on communication status, network activity, and datalogging.
- Wide protocol support: Can process multiple network protocols such as CAN (ISO15765), K-Line (ISO9141/KWP2000), and J1850 simultaneously via the 32-bit ARM architecture.
Compatible vehicles
The Openport 2.0 is universally applicable to OBD2-compatible vehicles via J2534, but is especially known for its in-depth programming capabilities with the following brands:
Subaru:
- Impreza / WRX / STI: (From 2001 - present, for ECU flashing via EcuFlash)
- Legacy / Forester / Outback: (From 2001 - present)
Mitsubishi:
- Lancer Evolution (Evo 5 through 10): (From 1998 - present)
- Eclipse / Galant: (From 2001 - present)
Toyota / Lexus:
- Almost all models: (1996 - present, compatible via Techstream TIS)
Land Rover / Jaguar:
- Various models: (2005 - present, compatible via JLR SDD)
Compatible software and operating systems
External software is required for the Openport 2.0 to function. The cable acts as a J2534 PassThru device and works with various OEM and third-party applications.
Compatible software:
- EcuFlash: For adjusting and flashing ROM files (commonly used with Subaru and Mitsubishi).
- Toyota Techstream (TIS): For dealer-level diagnostics on Toyota and Lexus.
- JLR SDD: For vehicle diagnosis and calibration on Jaguar and Land Rover.
- Forscan: For diagnosis and programming of Ford and Mazda vehicles.
Operating systems:
- Windows: Fully supported on Windows 7, Windows 8, Windows 10, and Windows 11 (32-bit and 64-bit).
💡
Good to know: Always use a quality microSD card (formatted in FAT32) and place a valid configuration file (logcfg.txt) in the root folder for correct standalone datalogging during a test drive.
Package Contents

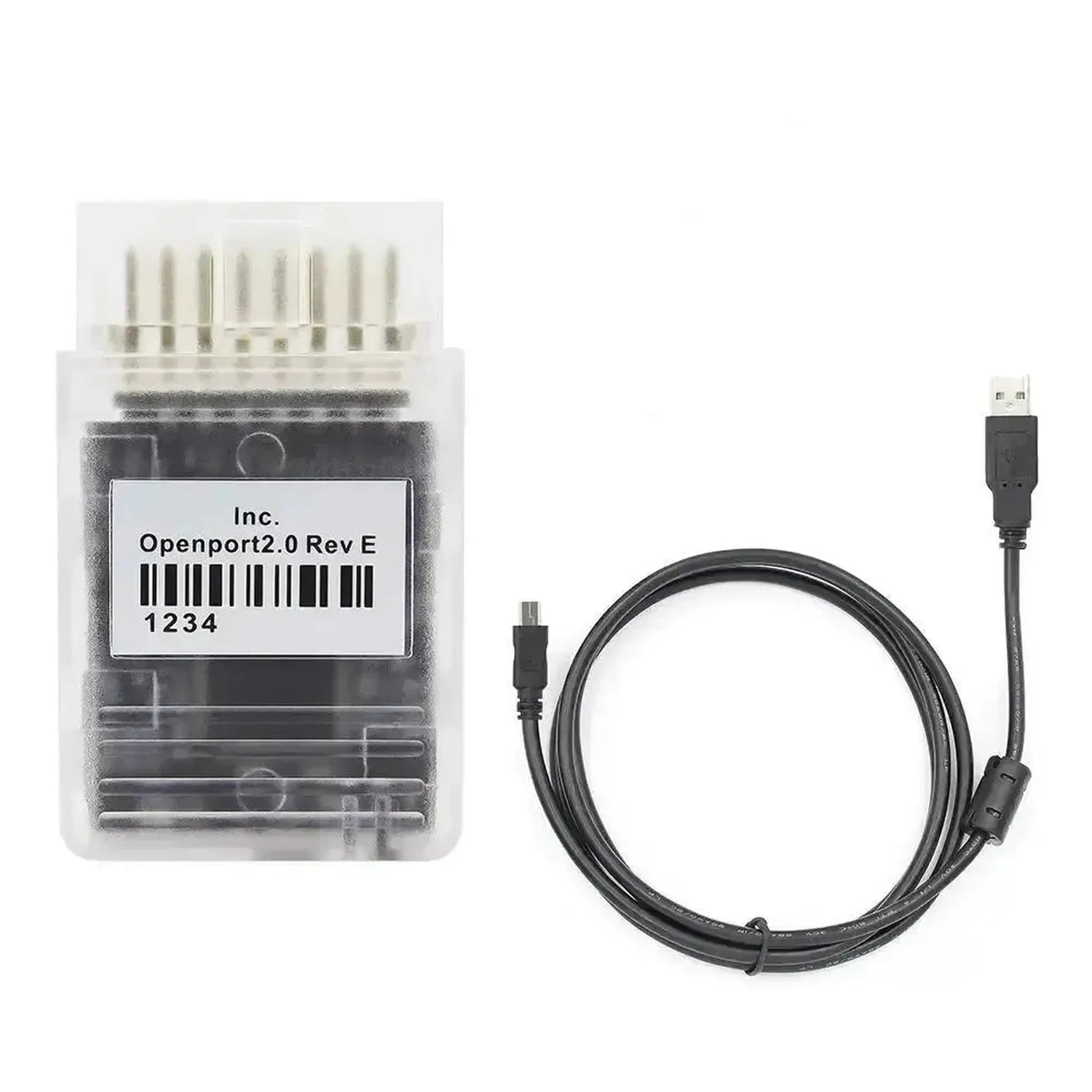

- 1x Universal Openport 2.0 | Interface cable
- 1x USB 2.0 connection cable
Technical specifications
| Specification | Description |
|---|---|
| Product brand | Universal |
| Product model | Openport 2.0 |
| Category | Interface cable |
| Vehicle connector | 16-pin OBD2 |
| System connector | USB 2.0 |
| Hardware architecture | 32-bit ARM processor (72 MHz) |
| Communication standard | J2534 PassThru |
| Supported protocols | CAN 2.0 (ISO15765), K-Line (ISO9141/KWP2000), J1850 (PWM/VPW) |
| Datalogging interface | Integrated MicroSD card slot |
| Programmable outputs | 5V-25V or GND via OBD pins or 2.5mm jack |
| Status indication | Integrated RGB LEDs |
| Operating voltage | 12V (powered via OBD2 port) |
